| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CE | |
| CSA | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Flammability Rating | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Termination Style | |
| UL | |
| Voltage | |
| Wire Range | |
| Withstand Rating |

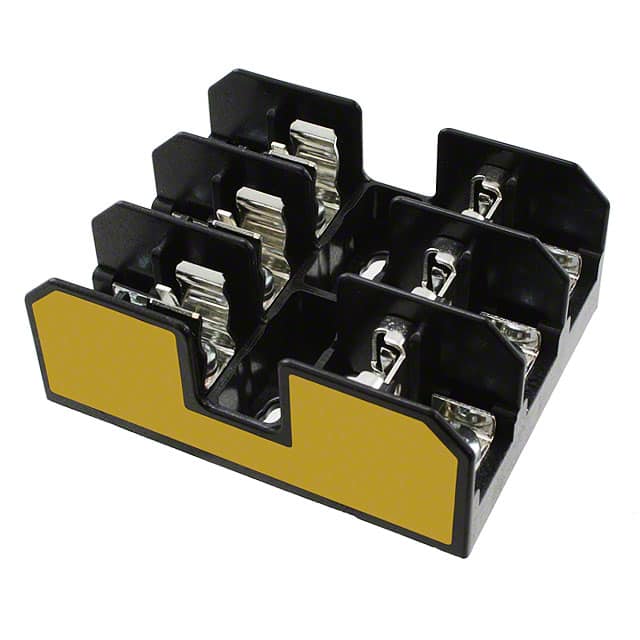

The Eaton Bussmann BC6033S is a 3-circuit Class CC fuseholder block designed for use with 13/32" x 1-1/2" (10x38mm) Class CC cartridge fuses. It is rated for 30A at 600V and features a high withstand rating of 200,000A RMS symmetrical. The block is chassis mounted and uses screw terminals for wiring, accepting #10 to #14 AWG copper wire only.
The housing is made of thermoplastic with a UL 94 V-0 flammability rating, ensuring safety in demanding environments. The contacts are bronze with bright tin plating for reliable electrical connections. The fuseholder is UL Listed under UL 512 (File E14853) and CSA Certified (C22.2 No. 39, Class 6225-01, File 47235).
This fuseholder block is suitable for industrial control panels, power distribution, and branch circuit protection where high interrupting capacity is required. The 3-circuit design allows for independent fuse protection in a compact form factor.
| Qty | Low | High |
|---|---|---|
| 6+ | $25.49 | $25.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BC6033S is rated for 30 A.
The voltage rating is 600 V.
The withstand rating is 200,000 A rms symmetrical.
It accepts Class CC cartridge fuses measuring 13/32" x 1-1/2" (10x38mm), such as Bussmann LP-CC, KTK-R, and FRQ-R series.
It has 3 independent circuits.
It is UL Listed (UL 512, File E14853), CSA Certified (C22.2 No. 39, File 47235), and CE compliant per the datasheet.
