| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Flammability Rating | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Number of Poles | |
| Operating Temperature | |
| Termination Style | |
| Voltage | |
| Wire Range | |
| Withstand Rating |

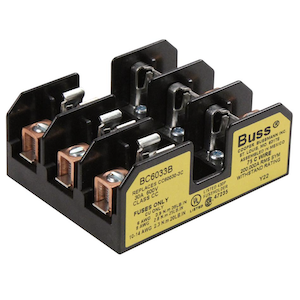

The Eaton Bussmann BC6033B is a 3-pole Class CC fuse block designed for use with Class CC fuses such as Bussmann LP-CC, KTK-R, and FRQ-R series. It is rated for 30 amps at 600 volts and offers a high interrupting rating of 200,000A RMS symmetrical, making it suitable for demanding industrial applications.
The fuse block is chassis mounted and uses solder lug terminals for secure connections. It accepts wire sizes from #14 to #6 AWG (copper only) and is built with bright tin-plated bronze clips and a thermoplastic base. The operating temperature is marked as 75°C wire, and the housing material meets UL 94V-0 flammability rating.
This component is UL Listed under UL 512 (Guide IZLT, File E14853) and CSA Certified (C22.2 No. 39). It is designed for use in branch circuit protection, motor control centers, and other industrial power distribution equipment where reliable overcurrent protection is required.
| Qty | Low | High |
|---|---|---|
| 6+ | $63.73 | $63.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BC6033B is rated for 30 amps continuous.
It is rated for 600 volts.
It accepts Class CC cartridge fuses, specifically 13/32" x 1-1/2" size.
The withstand rating is 200,000A RMS symmetrical.
It is a 3-pole fuse block.
It is designed for chassis mount.
It accepts copper wire from #14 to #6 AWG.
