| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,995 pcs
|
11995 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Transistor Type |

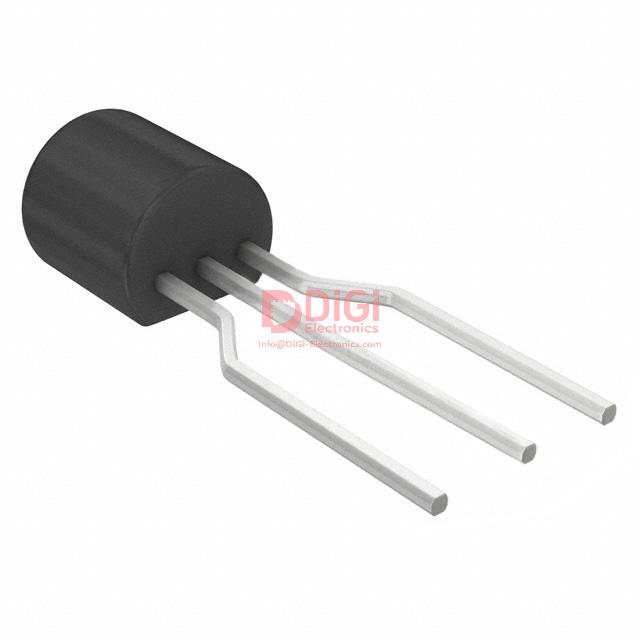

The ON Semiconductor BC548BTAR is a versatile NPN bipolar junction transistor (BJT) suitable for various electronic applications. It offers a collector-emitter breakdown voltage of 30V and can handle a maximum collector current of 100mA.
This transistor operates with a maximum power dissipation of 500mW and has a transition frequency of 300MHz, making it suitable for signal amplification tasks. The Vce saturation voltage is specified at 600mV at 5mA base current and 100mA collector current, with a minimum DC current gain (hFE) of 200 at 2mA base current and 5V collector-emitter voltage.
The BC548BTAR is housed in a standard TO-92-3 through-hole package, facilitating easy integration into circuit boards. It is designed for operation at temperatures up to 150°C (TJ).
Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1 (unlimited), and REACH unaffected status. While these compliance details are provided, they are marked with low confidence and should be verified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The collector-emitter breakdown voltage is 30V.
The maximum collector current is 100mA.
The maximum power dissipation is 500mW.
The transition frequency is 300MHz.
The BC548BTAR is supplied in a TO-92-3 package.
The BC548BTAR is designed for through-hole mounting.
The operating temperature range is up to 150°C (TJ).
