| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Operating Temperature | |
| Style | |
| Termination Style |

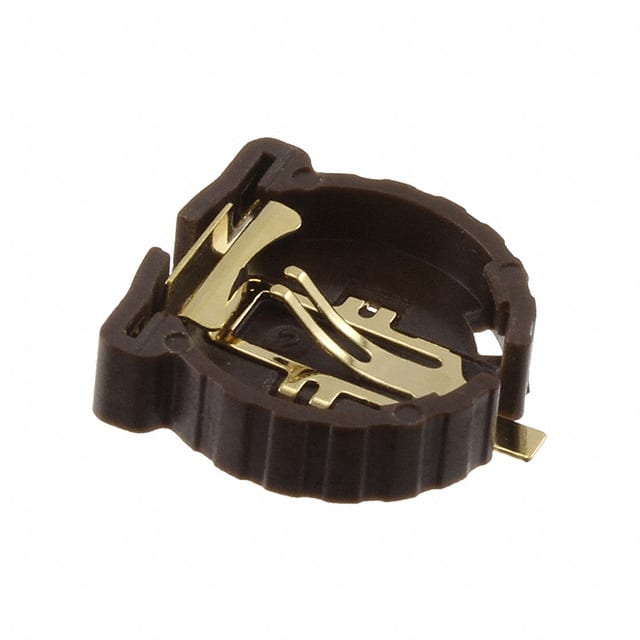

The BC501SM from MPD (Memory Protection Devices) is a coin cell battery holder designed for 12mm diameter batteries. It accommodates a single cell and features an open frame style for easy battery insertion. The holder is surface mount compatible with SMD (SMT) tab termination, making it suitable for automated PCB assembly. With a height above board of 4.00mm (0.157 inches), it allows for compact designs. The operating temperature range is -40°C to 85°C, enabling use in a variety of environments. This holder is intended for use with 1220 series coin cells.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $1.13 | $1.13 |
| 50+ | $1.00 | $1.00 |
| 100+ | $0.94 | $0.94 |
| 400+ | $0.84 | $0.84 |
| 800+ | $0.80 | $0.80 |
| 1,200+ | $0.77 | $0.77 |
| 2,800+ | $0.72 | $0.72 |
| 5,200+ | $0.68 | $0.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C.
Listed as RoHS compliant, but this is unverified.
12mm diameter coin cells, specifically 1220 series.
1 cell.
PCB, surface mount (SMD).
SMD (SMT) Tab.
4.00mm (0.157 inches).
