| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
91 pcs
|
91 pcs | On Request | 1 | On Request | On Request | 621 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| Shrouding | |
| Standard Package Qty | |
| Style | |
| Tape & Reel | |
| Terminal Material | |
| Termination |

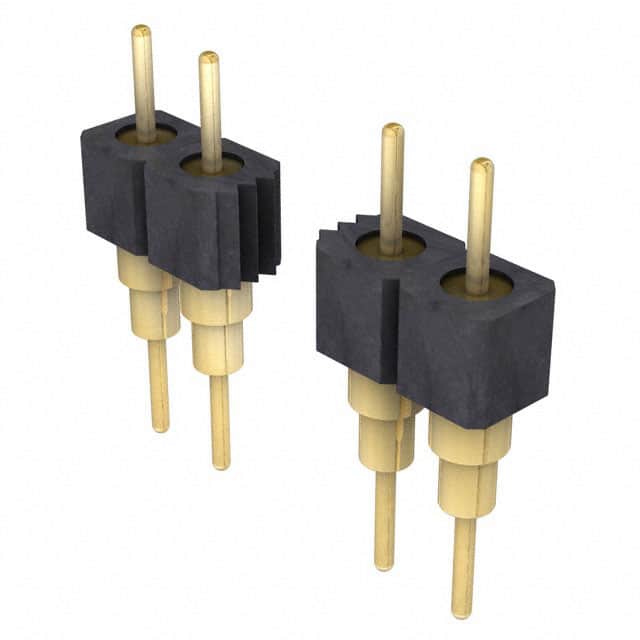

The Samtec BBS-112-G-A is a single row header with 12 positions at 2.54mm (0.100") pitch. It features male pin contacts with a nickel finish (20µin/0.51µm thick) over 50µin nickel underplate, and is designed for through hole solder termination. The connector is unshrouded with a push-pull fastening type and circular contact shape. The insulator is made of black glass filled polyester, rated for an operating temperature range of -55°C to +125°C. The overall contact length is 11.68mm (0.460") and the insulation height is 5.35mm (0.211"). This part is intended for board-to-board stacking applications and mates with Samtec SS, SL, SD, and other socket series. It is packaged in tubes with 18 pieces per tube.
12 positions in a single row.
2.54mm (0.100").
Through hole with solder termination.
Nickel with 20µin (0.51µm) thickness.
-55°C to +125°C.
Black glass filled polyester.
Listed as RoHS3 compliant, but this is unverified (low confidence).
