| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| Proposition 65 | |
| SVHC Present | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination |

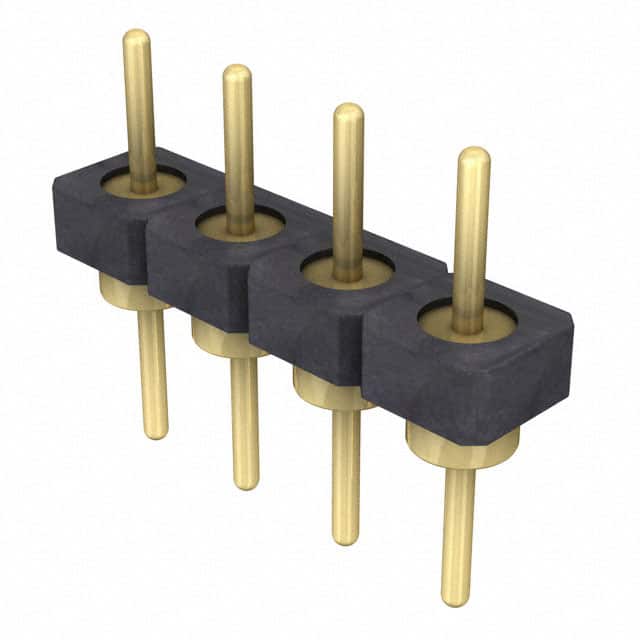

The Samtec BBL-104-G-F is a single row, 4-position male pin header from the BBL series. It features a 2.54mm (0.100") pitch and is designed for through hole mounting. The connector is unshrouded with a push-pull fastening type, suitable for board-to-board connections.
The contacts are male pins with circular shape, total contact length of 8.43mm, contact length of 3.10mm, and insulation height of 2.15mm. The insulator is black liquid crystal polymer (LCP). Operating temperature range is -55°C to 125°C. Contact finish is nickel with 0.51µm thickness.
The component is RoHS3 compliant, REACH unaffected, and halogen free. It is packaged in tubes with a standard quantity of 56 pieces.
4 positions, all loaded.
2.54mm (0.100").
Through hole, solder termination.
-55°C to 125°C.
Nickel with 0.51µm thickness.
Black liquid crystal polymer (LCP).
In tubes containing 56 pieces.
