| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
855 pcs
|
855 pcs | On Request | 1 | On Request | On Request | 614 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| PFAS | |
| Packaging Type | |
| Pitch | |
| Plating | |
| Row Spacing | |
| Shrouding | |
| Standard Package Qty | |
| Style | |
| Tape & Reel | |
| Terminal Material | |
| Termination | |
| UL Recognition |

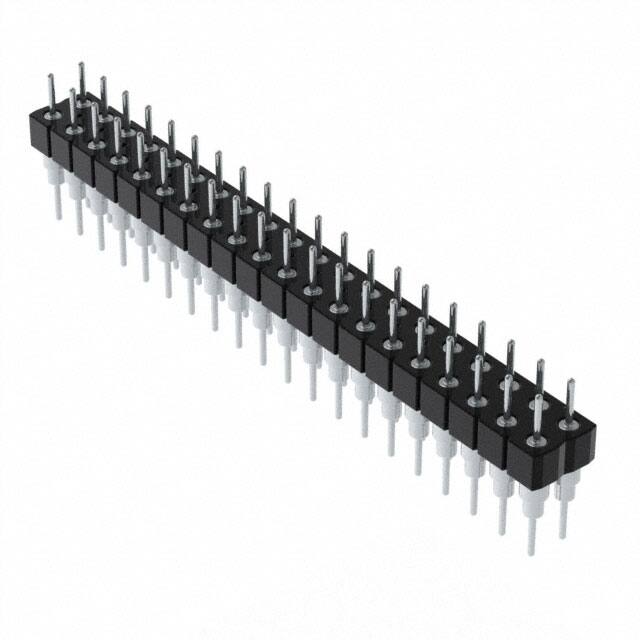

The Samtec BBD-120-T-A is a standard double-row screw machine terminal strip designed for reliable board-to-board connections. It features 40 positions arranged in 2 rows at a 2.54mm (0.100") pitch, with a through-hole mounting style and solder termination. The unshrouded header uses a push-pull fastening mechanism and has a circular contact shape with nickel finish over 50 µ" (1.27 µm) nickel underplating. The insulator is made of black glass-filled polyester, with an insulation height of 5.35mm (0.211") and an overall contact length of 0.460" (11.68mm).
The operating temperature range is -55°C to +125°C, making it suitable for demanding environments. This component is not lead-free solderable; it is designed for lead wave soldering only. Packaging is in tubes with 11 parts per tube. The BBD-120-T-A mates with Samtec SD and SDL series double-row socket strips.
Compliance data includes RoHS3 compliance (unverified), UL recognition (File No. E111594), REACH unaffected, and a California Proposition 65 warning for nickel and lead. No PFAS are known to be present. Note that pricing and lead time are not available from distributors; a request for quote is recommended.
40 positions arranged in 2 rows.
2.54mm (0.100") pitch.
Through-hole with solder termination.
-55°C to +125°C.
Nickel (Au or Sn over 50 µ" (1.27 µm) Ni).
RoHS3 compliant (unverified).
Tube, 11 parts per tube.
