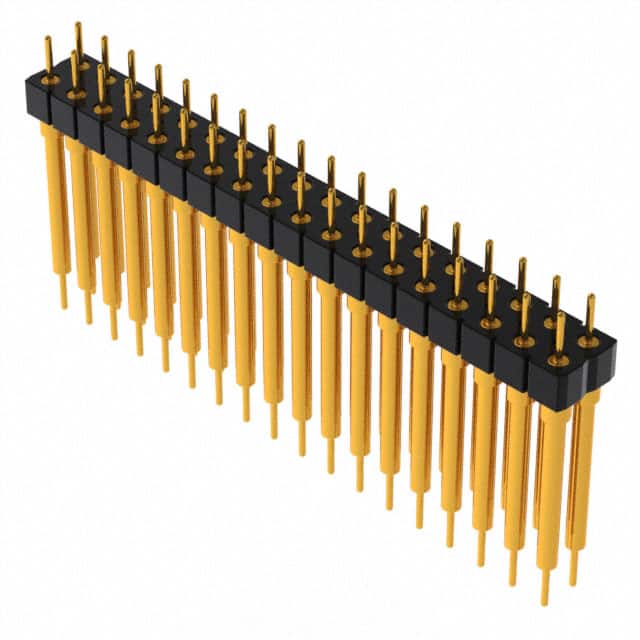

BBD-118-G-C Samtec BBD-118-G-C is a 36-position, double row, unshrouded header with 2.54mm pitch, through hole termination, and 20µ" gold plating.
Mfr Part #:

BBD-118-G-C

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec BBD-118-G-C is a 36-position, double row, unshrouded header with 2.54mm pitch, through hole termination, and 20µ" gold plating.
✓ Total Stock: 160 pcs

BBD-118-G-C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
160 pcs
On Request
160 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BBD-118-G-C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Shape
Contact Type
Fastening Type
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Overall Contact Length
Pitch
Plating
Row Spacing
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

BBD-118-G-C Description

Short technical summary and product information.

The Samtec BBD-118-G-C is a .100" (2.54mm) pitch double row screw machine terminal strip designed for board-to-board applications. It features 36 positions (2 rows of 18) with male pin contacts and a through hole solder termination. The insulator is black glass filled polyester with an insulation height of 14.86mm (0.585").



Contacts are machined from phosphor bronze or brass with a 20µ" (0.51µm) gold plating over 50µ" nickel underplate. The overall contact length is 0.835" (21.21mm) with a contact length of 3.18mm (0.125"). The unshrouded push-pull fastening type allows easy mating with compatible Samtec socket strips such as the SS, SD, HSS, SL, SDL, ESS, and ESD series.



This header is rated for an operating temperature range of -55°C to +125°C. It is packaged in tubes of 12 pieces. The BBD-118-G-C is UL recognized (File No. E111594) and is not lead-free solderable; it requires lead wave soldering only.

BBD-118-G-C Quick Information

Product Type: Header, Male Pins
Series: BBD
Canonical Name: Samtec BBD-118-G-C .100" Double Row Screw Machine Terminal Strip, 36 Positions, 2.54mm Pitch, Through Hole, Gold Plating
Subcategory: Board-to-Board, Unshrouded

BBD-118-G-C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: REACH Unaffected

BBD-118-G-C Features

  • 36-position double row unshrouded header.
  • 2.54mm (0.100") pitch with through hole termination.
  • 20µ" gold plating over 50µ" nickel underplate.
  • Operating temperature range -55°C to +125°C.
  • UL recognized (File No. E111594).

BBD-118-G-C Applications

  • Board-to-board stacking in electronic assemblies.
  • Mating with Samtec .100" socket strips.
  • Prototyping and production PCB interconnects.
  • Industrial control and instrumentation systems.

BBD-118-G-C FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the BBD-118-G-C have?

The BBD-118-G-C has 36 positions arranged in 2 rows.

What is the pitch of the BBD-118-G-C?

The pitch is 2.54mm (0.100").

What is the mounting type for this header?

Through hole solder termination.

What is the operating temperature range?

-55°C to +125°C.

What plating is used on the contacts?

20µ" (0.51µm) gold over 50µ" nickel underplate.

Is the BBD-118-G-C lead-free solderable?

No, it requires lead wave soldering only.
