| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
47 pcs
|
47 pcs | On Request | 1 | On Request | On Request | 529 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Finish Thickness - Mating | |
| Contact Length | |
| Contact Length (Mating Pin) | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination |

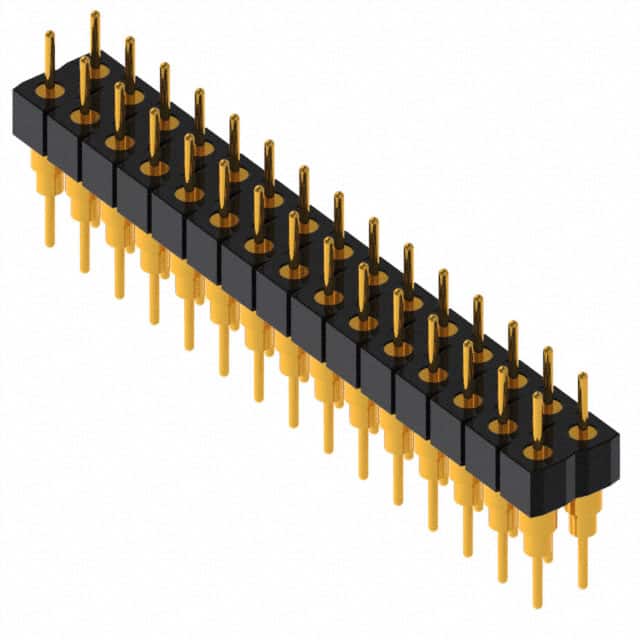

The Samtec BBD-115-G-A is a standard double row screw machine terminal strip header designed for board-to-board applications. It features 30 positions arranged in 2 rows with a 2.54mm pitch and 2.54mm row spacing. The connector uses male pin contacts with a circular contact shape and is unshrouded with a push-pull fastening type.
The header is through-hole mounted with solder termination. The insulator is made of black glass filled polyester with an insulation height of 5.35mm. The overall contact length is 11.68mm with a mating pin length of 3.18mm. The mating contact finish is 20 µ" gold over 50 µ" nickel underplating.
The part is packaged in tubes with 15 pieces per tube. It is RoHS3 and REACH compliant, has an MSL of 1 (not moisture sensitive), and operates over a temperature range of -55°C to 125°C.
30 positions, all loaded, in 2 rows.
2.54mm (0.100") pitch with 2.54mm (0.100") row spacing.
Through hole with solder termination.
-55°C to +125°C.
Yes, RoHS3 compliant and REACH unaffected.
