| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,955 pcs
|
1955 pcs | On Request | 1 | On Request | On Request | 620 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Country of Origin | |
| Fastening Type | |
| HTS Code | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Standard Package Qty | |
| Style | |
| Tape & Reel | |
| Termination | |
| UL | |
| UL Recognition | |
| Underplating Material | |
| Underplating Thickness |

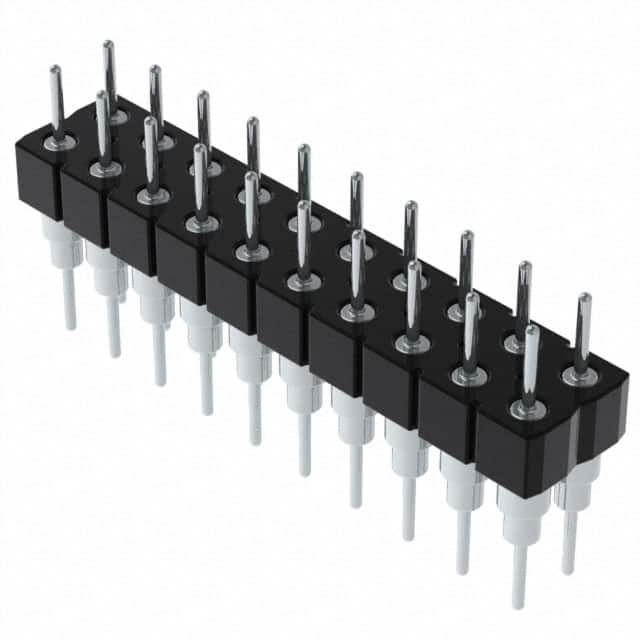

The Samtec BBD-110-T-A is a standard double row screw machine terminal strip from the BBD series. It is a 20-position (2x10) unshrouded header designed for board-to-board stacking applications. The connector features a 2.54mm (0.100") pitch and 2.54mm row spacing, with through-hole termination for solder attachment.
The contacts are machined male pins made of phosphor bronze or brass, with a tin plating over a 1.27µm nickel underplate. The insulator is black glass-filled polyester. The overall contact length is 11.68mm, with a contact length of 5.33mm. The insulation height is 5.35mm.
This connector is suitable for applications requiring reliable separable connections with the flexibility of a permanent connection. It mates with Samtec SS, SD, HSS, SL, SDL, ESS, ESD socket strips. The operating temperature range is -55°C to 125°C. The part is not lead-free solderable and is intended for wave soldering only. It is UL recognized (File E111594). Packaging is in tubes of 22 pieces.
20 positions (2 rows of 10).
2.54mm (0.100").
Through-hole.
Tin plating over 1.27µm nickel underplate.
-55°C to 125°C.
No, it is not lead-free solderable; it is intended for wave soldering only.
The -A suffix indicates a contact length of 5.33mm (0.210").
