| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
83 pcs
|
83 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead-Free Solderable | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Overall Contact Length | |
| Packaging Type | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Terminal Material | |
| Termination |

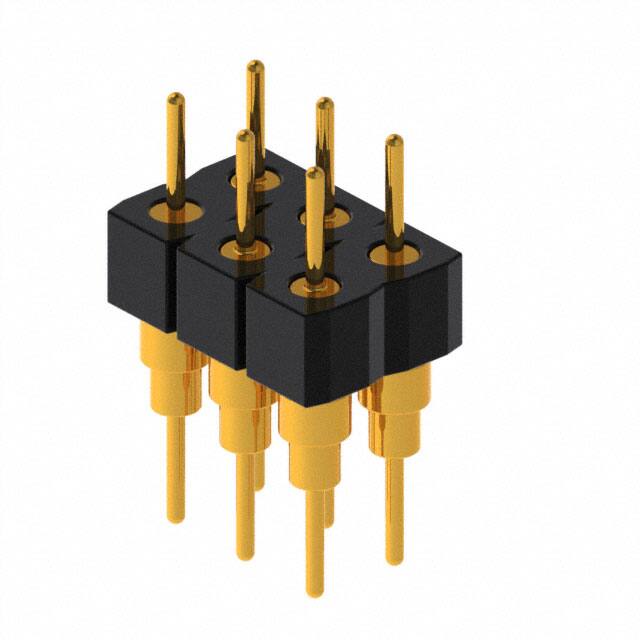

The Samtec BBD-103-G-A is a standard double row screw machine terminal strip header. It has 6 positions (2 rows of 3) with a 2.54mm pitch and 2.54mm row spacing. The contact system uses machined terminals with male pins and circular contact shape. The connector is unshrouded and uses push-pull fastening. It is designed for board-to-board applications.
The insulator is black glass-filled polyester. Contacts are gold-plated (20µ" over 50µ" nickel) on the mating area, with nickel on the termination area. The terminal material is phosphor bronze or brass. The operating temperature range is -55°C to 125°C. The part is RoHS3 compliant and REACH unaffected, but California Prop 65 warns of nickel and lead content.
Mounting is through-hole with solder termination. The contact length is 3.18mm and overall contact length is 11.68mm. Insulation height is 5.35mm. The part is packaged in bulk. Note: the datasheet indicates this part is not lead-free solderable (lead wave only), but it is RoHS3 compliant.
6 positions, arranged in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
Through-hole mounting with solder termination.
Gold plating (20µ") on the mating surface over 50µ" nickel; nickel on the termination.
-55°C to +125°C.
RoHS3 compliant, but the part is not lead-free solderable (lead wave only).
Black glass-filled polyester.
