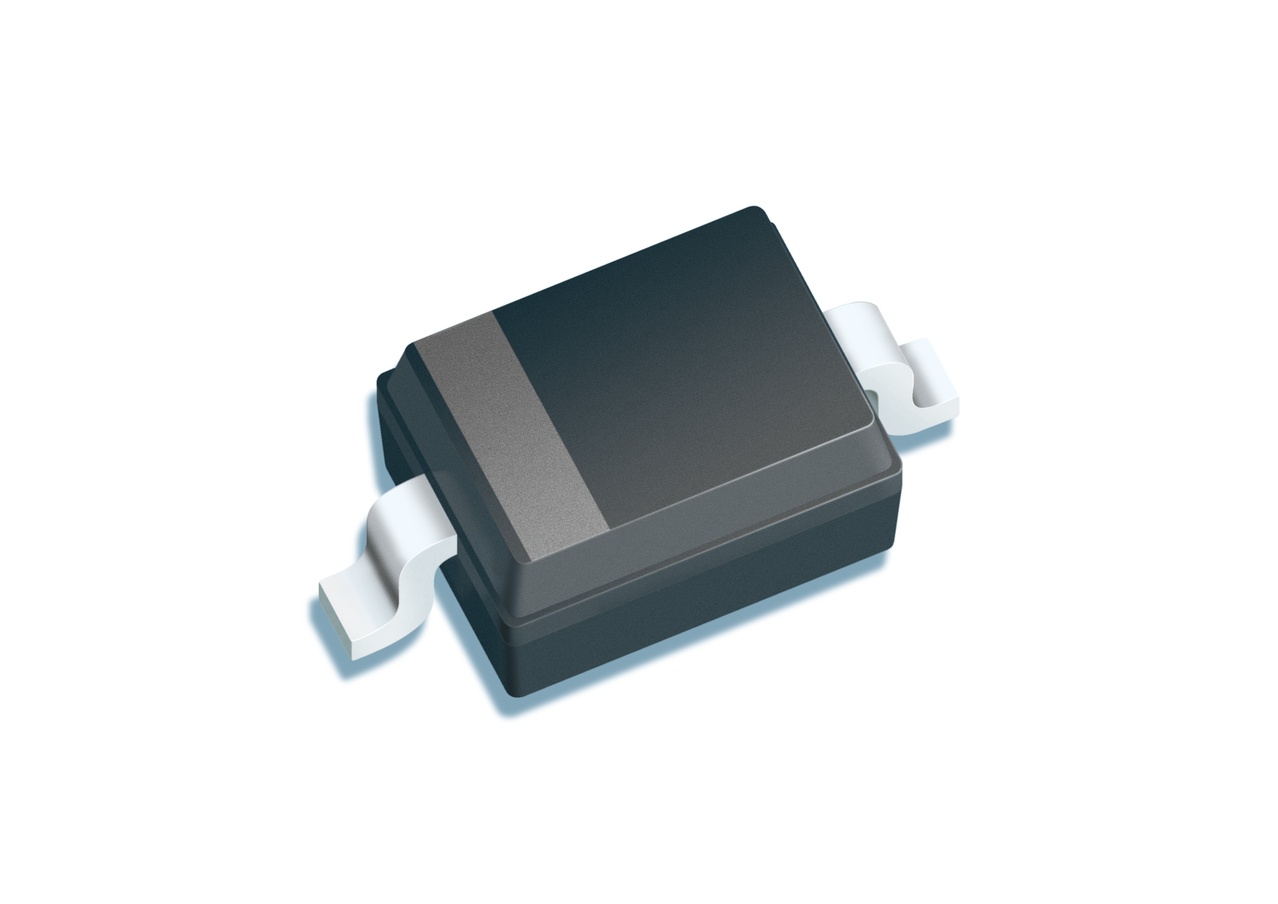

The BB131,135 is a VHF variable capacitance diode (varicap) designed for electronic tuning applications. It is manufactured by NXP Semiconductors in a very small plastic SMD package (SOD323/SC-76). This diode offers excellent linearity and is suitable for satellite tuners, tunable coupling, and VCO circuits.
The diode has a maximum reverse voltage of 30V and a forward current of 20mA. Its capacitance varies from 8-17pF at 0.5V to 0.7-1.055pF at 28V (measured at 1MHz), providing a capacitance ratio of 12 to 16. The series resistance is a maximum of 3Ω at 470MHz. Reverse leakage current is low: 10nA at 25°C and 200nA at 85°C.
The device is housed in a SOD323 surface mount package, allowing for compact assembly. The operating junction temperature range is -55°C to +125°C, with storage temperature up to +150°C.
The maximum continuous reverse voltage is 30V.
The maximum continuous forward current is 20mA.
The device is available in a SOD323 (SC-76) surface mount package.
The capacitance ratio (C0.5/C28) is between 12 and 16.
The maximum series resistance is 3Ω at 470MHz.
-55°C to +125°C junction temperature.
