| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
529,000 pcs
|
529000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,210 pcs
|
2210 pcs | On Request | 1 | On Request | On Request | 07+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Capacitance Ratio | |
| Capacitance Ratio Condition | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Supplier Device Package | |
| Voltage |
The BB131 is a single variable capacitance diode (varactor) designed for voltage-controlled tuning applications. It offers a reverse voltage rating of 30V and a nominal capacitance of 1.055pF measured at Vr=28V and f=1MHz. The capacitance ratio (C0.5/C28) is 16, indicating a wide tuning range.

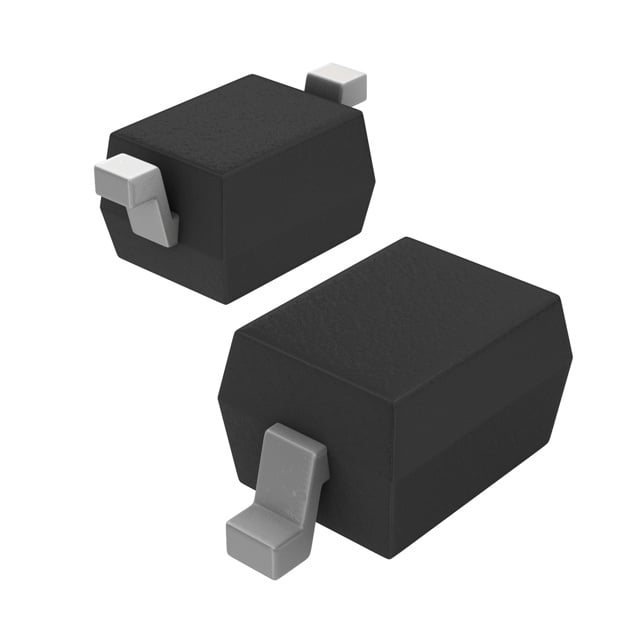

The diode is housed in a surface-mount SOD-323 package (also available as SC-76), making it suitable for compact PCB designs. It operates over a temperature range of -55°C to 125°C, ensuring reliability in harsh environments.
Typical applications include voltage-controlled oscillators (VCOs), RF tuning circuits, and phase-locked loop (PLL) filters. The BB131 is a lead-free device with RoHS3 compliance (unverified) and an MSL of 1 (unlimited floor life).
30V.
SC-76, SOD-323 (supplier device package SOD-323).
1.055pF at Vr=28V, f=1MHz.
-55°C to 125°C.
