BAV99HMFHT116 BAV99HMFHT116 is a general purpose fast switching diode array from ROHM Semiconductor. It features a maximum reverse voltage of 80V, forward current of 215mA, and a reverse recovery time of 4ns.
Mfr Part #:

BAV99HMFHT116

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
BAV99HMFHT116 is a general purpose fast switching diode array from ROHM Semiconductor. It features a maximum reverse voltage of 80V, forward current of 215mA, and a reverse recovery time of 4ns.
✓ Total Stock: 15,380 pcs

BAV99HMFHT116 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
15,380 pcs
On Request
15380 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BAV99HMFHT116 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Diode Configuration
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
Speed
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

BAV99HMFHT116 Description

Short technical summary and product information.

The BAV99HMFHT116 is a fast switching diode array offered by ROHM Semiconductor. It is configured as a single pair of series-connected diodes, making it suitable for applications requiring compact, integrated diode configurations.



This device is rated for a maximum reverse voltage of 80V and a forward current of 215mA. With a fast reverse recovery time of 4ns, it is designed for high-speed switching circuits. The forward voltage is 1.25V at 150mA, and the reverse leakage current is 100nA at 80V.

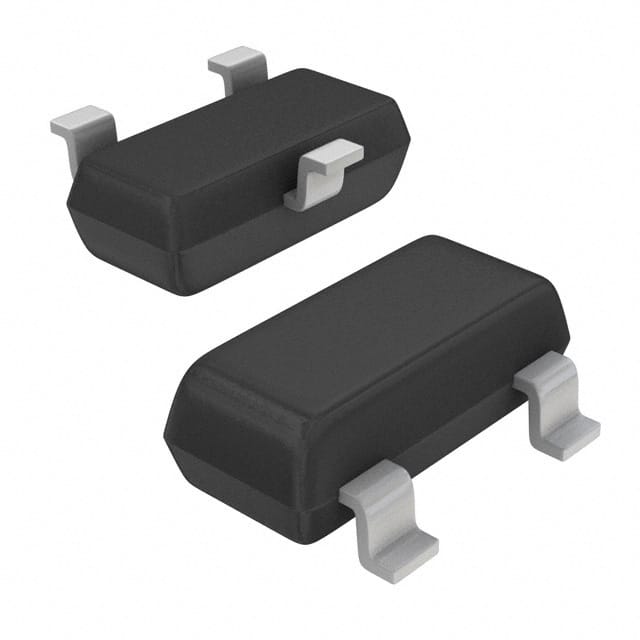

The BAV99HMFHT116 is surface mount packaged in a small SSD3 package, which is compatible with TO-236-3, SC-59, and SOT-23-3 footprints. It can operate at junction temperatures up to 150°C. This component is RoHS compliant.

BAV99HMFHT116 Quick Information

Product Type: Switching Diode Array
Canonical Name: BAV99HMFHT116 Fast Switching Diode Array
Subcategory: Diode Array

BAV99HMFHT116 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BAV99HMFHT116 Features

  • Fast reverse recovery time of 4ns.
  • Rated for 80V maximum reverse voltage.
  • Maximum forward current of 215mA.
  • Surface mount SSD3 package.
  • 1 pair series connected diode configuration.

BAV99HMFHT116 Applications

  • Used in high-speed switching circuits.
  • Suitable for general purpose signal processing.
  • Ideal for compact surface mount designs.

BAV99HMFHT116 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the reverse recovery time of the BAV99HMFHT116?

The reverse recovery time is 4 ns.

What is the forward voltage drop of the BAV99HMFHT116?

The forward voltage is 1.25 V at 150 mA.

What package is the BAV99HMFHT116 available in?

It is available in a surface mount SSD3 package, compatible with TO-236-3, SC-59, and SOT-23-3 footprints.

What is the maximum reverse voltage of the BAV99HMFHT116?

The maximum reverse voltage is 80 V.

What is the maximum forward current of the BAV99HMFHT116?

The maximum forward current is 215 mA.
