| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
$0.11
|
25 pcs |
$0.11
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Diode Configuration | |
| Lead Style | |
| Mounting Type | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Storage Temperature |

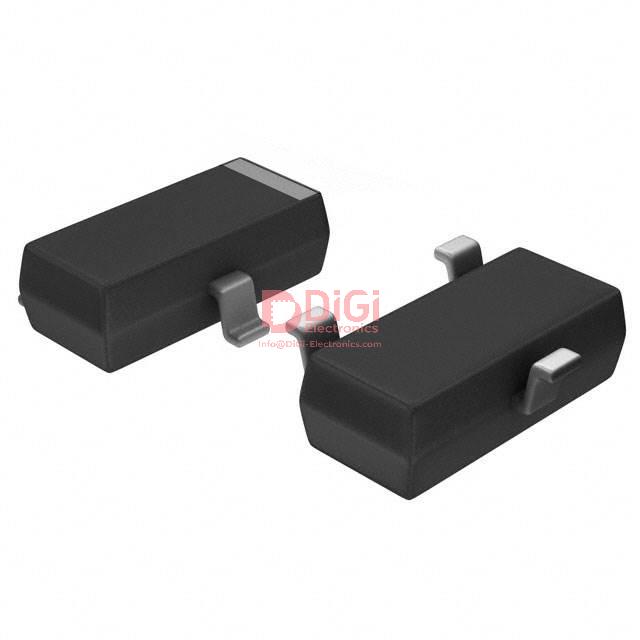

The BAV99-G from Comchip Technology is a diode array designed for general-purpose applications. It features a 1 pair series connection configuration, offering a maximum reverse voltage of 70V and an average rectified current of 215mA per diode.
This diode array operates with a forward voltage of 1.25V at 150mA and boasts a fast recovery time of 6ns. The reverse leakage current is a low 2.5µA at 70V. It is suitable for a wide operating temperature range from -55°C to 150°C.
Designed for surface mounting, the BAV99-G is packaged in the common TO-236-3, SC-59, or SOT-23-3 package. This makes it versatile for integration into various electronic circuits where space is a consideration.
Key electrical characteristics include its standard technology, fast recovery speed, and specific voltage and current ratings, making it a reliable component for signal processing and switching applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
70V.
215mA.
1.25V.
6ns.
SOT-23-3 (TO-236-3, SC-59).
-55°C to 150°C.
1 pair series connection.
