The BAT54S from SMC Diode Solutions is a Schottky diode array configured as 1 pair series connection. It is designed for general-purpose switching and rectification in low-power circuits. The device features a maximum reverse voltage of 30 V and an average rectified forward current of 150 mA.
Forward voltage is typically 1 V at 100 mA forward current, and reverse leakage current is 2 μA at 25 V reverse voltage. The fast switching speed is supported by a reverse recovery time of 5 ns. The junction operating temperature range extends to 125°C.

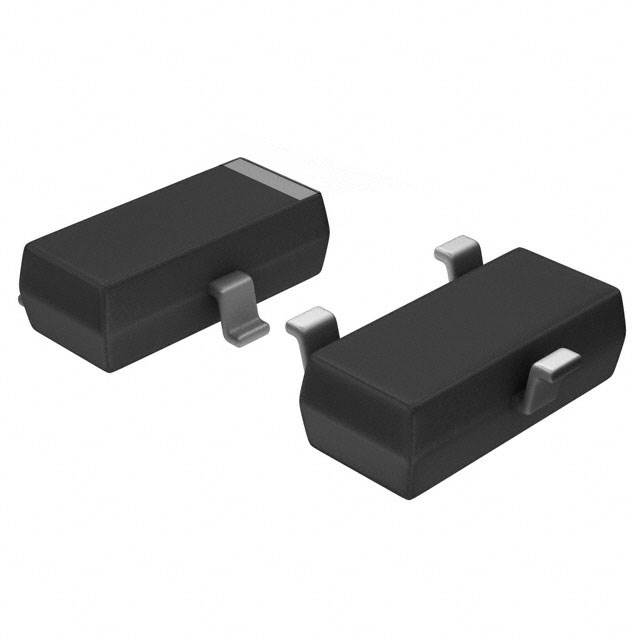

The component is offered in the standard surface-mount SOT-23-3 package, also known as TO-236-3 or SC-59. It is suitable for automated assembly and space-constrained designs. RoHS compliance is claimed but unverified.
The maximum DC reverse voltage is 30 V.
The maximum average rectified current is 150 mA.
The forward voltage drop is 1 V maximum at a forward current of 100 mA.
The maximum reverse recovery time is 5 ns.
The BAT54S is offered in a SOT-23-3 surface-mount package (also known as TO-236-3 or SC-59).
The BAT54S contains one pair of Schottky diodes connected in series.
The maximum junction operating temperature is 125°C.
