| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,000 pcs
|
42000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Diode Configuration | |
| Industrial Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation | |
| Reverse Recovery Time | |
| Reverse Recovery Time (trr) | |
| Reverse Voltage | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Termination Style | |
| Voltage |

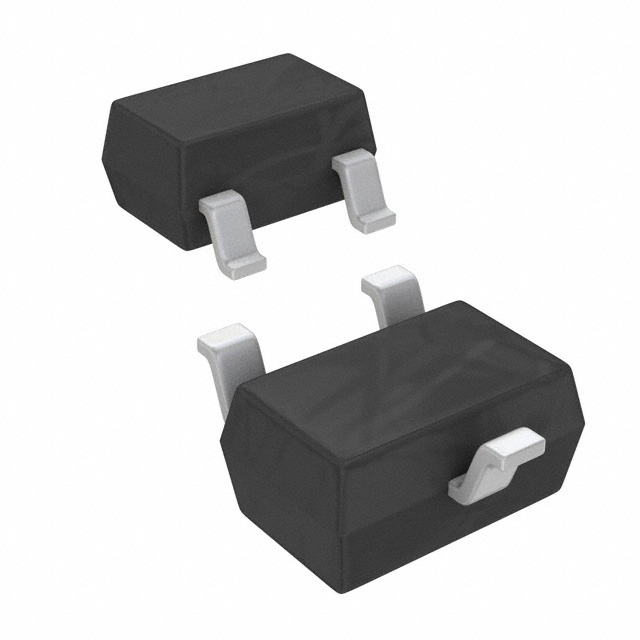

The BAT54CW is a Schottky barrier diode array from SMC Diode Solutions, configured as 1 pair common cathode. It is designed for surface mount applications and comes in the SC-70 / SOT-323 package with Gull Wing leads.
Electrical specifications include a maximum reverse voltage of 30V and forward continuous current of 200mA. Forward voltage is 240mV at 0.1mA, 320mV at 1mA, 400mV at 10mA, 500mV at 30mA, and 1.0V at 100mA. Reverse leakage current is limited to 2 μA at 25V reverse bias. The diode capacitance is 10pF at 1V and 1MHz.
This diode offers extremely fast switching with a reverse recovery time of 5ns (test condition: IF=IR=10mA, Irr=0.1×IR, RL=100Ω). The junction operating temperature range is up to 125°C, and storage temperature range is -55°C to +150°C. Maximum power dissipation is 200mW, with typical thermal resistance junction-to-ambient of 500°C/W.
The part is supplied in tape and reel packaging with standard quantity of 3000 pieces per reel. The device is lead-free (Pb-Free) as stated on the datasheet.
The maximum reverse voltage is 30V.
The maximum forward continuous current is 200mA.
The forward voltage is 0.40V maximum at IF=10mA.
The reverse recovery time is 5ns (test conditions: IF=IR=10mA, Irr=0.1×IR, RL=100Ω).
The BAT54CW is available in SC-70 / SOT-323 surface mount package.
The diode capacitance is 10pF at VR=1V, f=1MHz.
The datasheet states it is a Pb-Free device. RoHS compliance is unverified, but the lead-free status is confirmed.
