| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Average Rectified Current | |
| Mounting Type | |
| Reverse Voltage |
The BAT54C from Taiwan Semiconductor is a Schottky Barrier Diode designed for various electronic applications. This component features a maximum reverse voltage of 30V and an average rectified current of 200mA. The forward voltage is specified at 520mV when conducting 250mA.

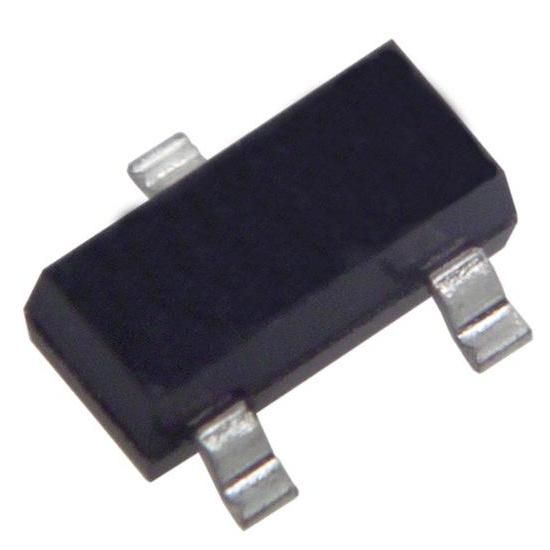

Packaged in a compact SOT-23 surface-mount case, the BAT54C is suitable for applications where space is a constraint. Its Schottky barrier construction provides efficient rectification characteristics.
This diode is commonly used in power supply circuits, switching applications, and signal detection where low forward voltage drop and fast switching speeds are beneficial. The SOT-23 package allows for easy integration into printed circuit boards using standard surface-mount assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 30V.
The average rectified current is 200mA.
The typical forward voltage is 520mV at 250mA.
The typical reverse leakage current is 0.5µA at 25V.
The BAT54C is available in a SOT-23 surface mount package.
