| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,154 pcs
|
8154 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

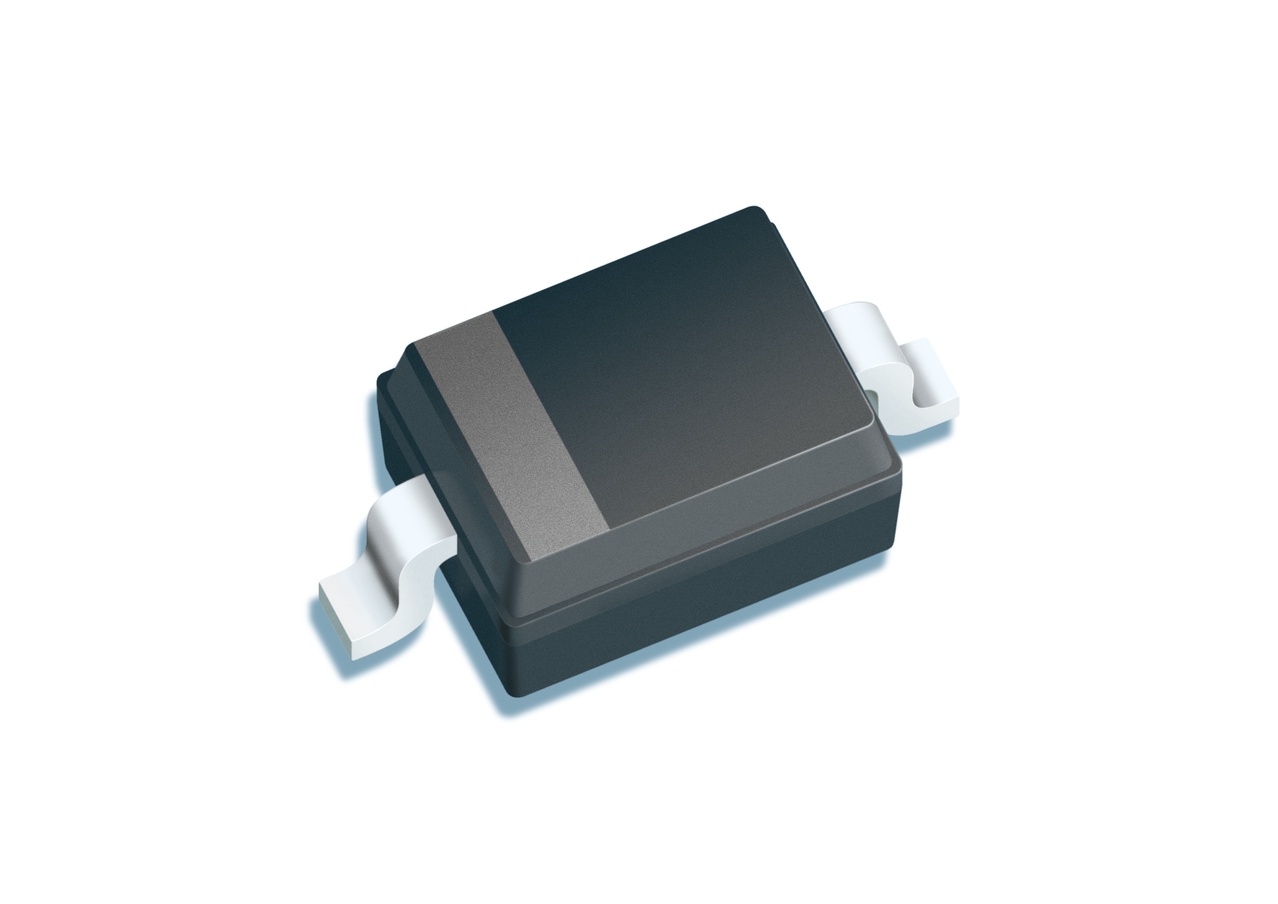

The BAT165E6327 is a Schottky rectifier diode manufactured by Infineon Technologies. It is designed for surface-mount applications and comes in a compact SC-76/SOD-323 package with a supplier device package of PG-SOD323-2. This diode offers a maximum average rectified current of 750 mA and a typical forward voltage of 740 mV at 750 mA. It features fast recovery speed (≤500 ns, >200 mA Io) suitable for high-frequency switching applications. The junction capacitance is typically 12 pF at 10V and 1 MHz. The maximum operating junction temperature is 150°C. This diode is RoHS3 compliant and has an MSL of Level 1 (unlimited). It is suitable for use in power supply rectification, polarity protection, and freewheeling diode applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
| 10+ | $0.68 | $0.68 |
| 100+ | $0.43 | $0.43 |
| 500+ | $0.27 | $0.27 |
| 1,000+ | $0.20 | $0.20 |
| 3,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
750 mA.
740 mV at 750 mA.
Fast recovery ≤500 ns, >200 mA Io.
SC-76, SOD-323 (PG-SOD323-2).
12 pF at 10V, 1MHz.
150°C.
Yes, RoHS3 compliant (unverified).
