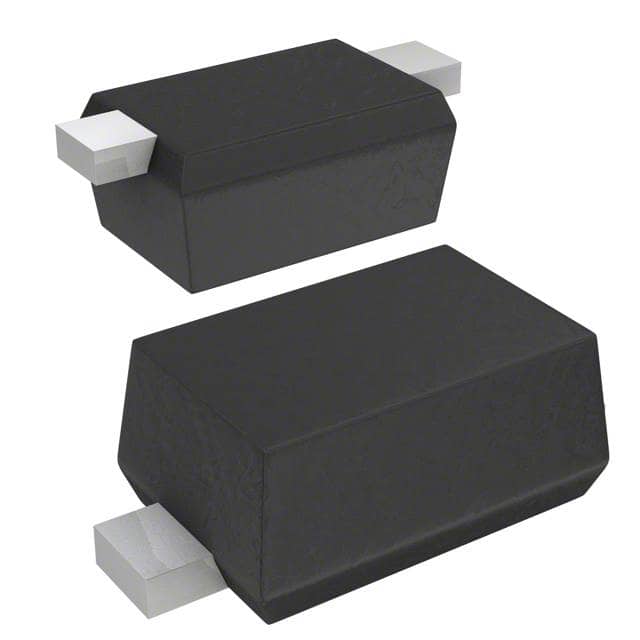

The BAS70KFILM is a Schottky barrier diode from STMicroelectronics designed for high-speed switching applications. It features a maximum reverse voltage of 70V and an average rectified current of 70mA. The forward voltage is typically 1V at 15mA forward current, enabling efficient low-power operation.
With a low junction capacitance of 2pF at 0V and 1MHz, this diode is well-suited for high-frequency circuits. It is classified as a small signal diode with speed up to 200mA, making it ideal for signal clamping, polarity protection, and low-power rectification.
The device is housed in a compact SOD-523 surface mount package, allowing for space-efficient PCB designs. It operates at junction temperatures up to 150°C, providing reliable performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
| 10+ | $0.17 | $0.17 |
| 100+ | $0.11 | $0.11 |
| 500+ | $0.08 | $0.08 |
| 1,000+ | $0.07 | $0.07 |
| 3,000+ | $0.06 | $0.06 |
| 6,000+ | $0.05 | $0.05 |
| 9,000+ | $0.05 | $0.05 |
| 15,000+ | $0.04 | $0.04 |
| 21,000+ | $0.04 | $0.04 |
| 30,000+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
70V.
70mA.
1V maximum at 15mA forward current.
SOD-523 surface mount package.
2pF typical at 0V reverse bias and 1MHz.
Maximum junction temperature 150°C.
Yes, it is classified as a small signal diode with speed <=200mA, any speed, and low capacitance.
