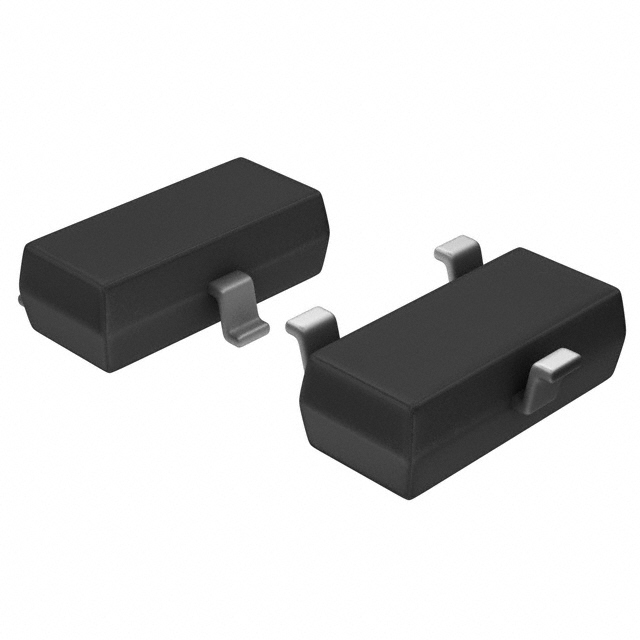

BAS70-05FILM The STMicroelectronics BAS70-05FILM is a Schottky diode array with a 70V reverse voltage rating and 70mA continuous forward current. It is packaged in a surface-mount SOT-23-3.
Mfr Part #:

BAS70-05FILM

Available from 2 distributors
Mfr Name: ST
ST
The STMicroelectronics BAS70-05FILM is a Schottky diode array with a 70V reverse voltage rating and 70mA continuous forward current. It is packaged in a surface-mount SOT-23-3.
✓ Total Stock: 9,220 pcs
$ Price Range: $0.02

BAS70-05FILM Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request 0808+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
220 pcs
On Request
220 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BAS70-05FILM Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Diode Capacitance
Diode Configuration
Lead Spacing
Lead Style
Mounting Type
SVHC Present
Speed
Storage Temperature
Supplier Device Package
Technology
View Similar Products (0)

BAS70-05FILM Description

Short technical summary and product information.

The BAS70-05FILM from STMicroelectronics is a Schottky barrier diode array designed for signal detection and temperature compensation in RF applications. It features very low conduction and switching losses, with low forward and reverse recovery times.



Key electrical specifications include a maximum repetitive peak reverse voltage of 70V and a continuous forward current of 70mA per diode. The diode capacitance is a maximum of 2pF at 1MHz and 0V reverse voltage. The forward voltage drop is typically 410mV at 1mA and 750mV at 10mA. The device also exhibits a low reverse leakage current of 10µA at 70V.



This surface mount device comes in a SOT-23-3 package, also known as TO-236-3 or SC-59. The operating junction temperature is rated up to 150°C. Its low capacitance, low series inductance, and low resistance make it suitable for various signal processing tasks.



The BAS70 series offers multiple configurations, with the BAS70-05FILM being a common cathode type. Its robust design and performance characteristics make it a reliable choice for applications requiring efficient signal handling.

BAS70-05FILM Quick Information

Product Type: Schottky Diode Array
Series: BAS70
Canonical Name: BAS70-05FILM Schottky Diode Array
Subcategory: Schottky Diode Array

BAS70-05FILM Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BAS70-05FILM Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

BAS70-05FILM Features

  • 70V repetitive peak reverse voltage.
  • 70mA continuous forward current.
  • Low capacitance diode (2pF max).
  • Surface mount SOT-23-3 package.
  • Suitable for RF applications.

BAS70-05FILM Applications

  • High-speed switching in power management circuits.
  • Signal rectification in low voltage applications.
  • Protection clamping in RF circuits.
  • Small signal switching in portable devices.

BAS70-05FILM FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum repetitive peak reverse voltage of the BAS70-05FILM?

70 V.

What is the continuous forward current rating?

70 mA.

What is the typical forward voltage drop at various currents?

410 mV at 1 mA, 750 mV at 10 mA, and 1 V at 15 mA.

What package types are available for the BAS70-05FILM?

TO-236-3, SC-59, SOT-23-3, with SOT-23-3 as the supplier device package.

What is the diode configuration of the BAS70-05FILM?

1 pair common cathode.

What is the maximum operating junction temperature?

150 °C.

What is the typical junction capacitance of the BAS70-05FILM?

2 pF at 0 V and 1 MHz.
