| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
91,020 pcs
|
91020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Diode Configuration | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Voltage |

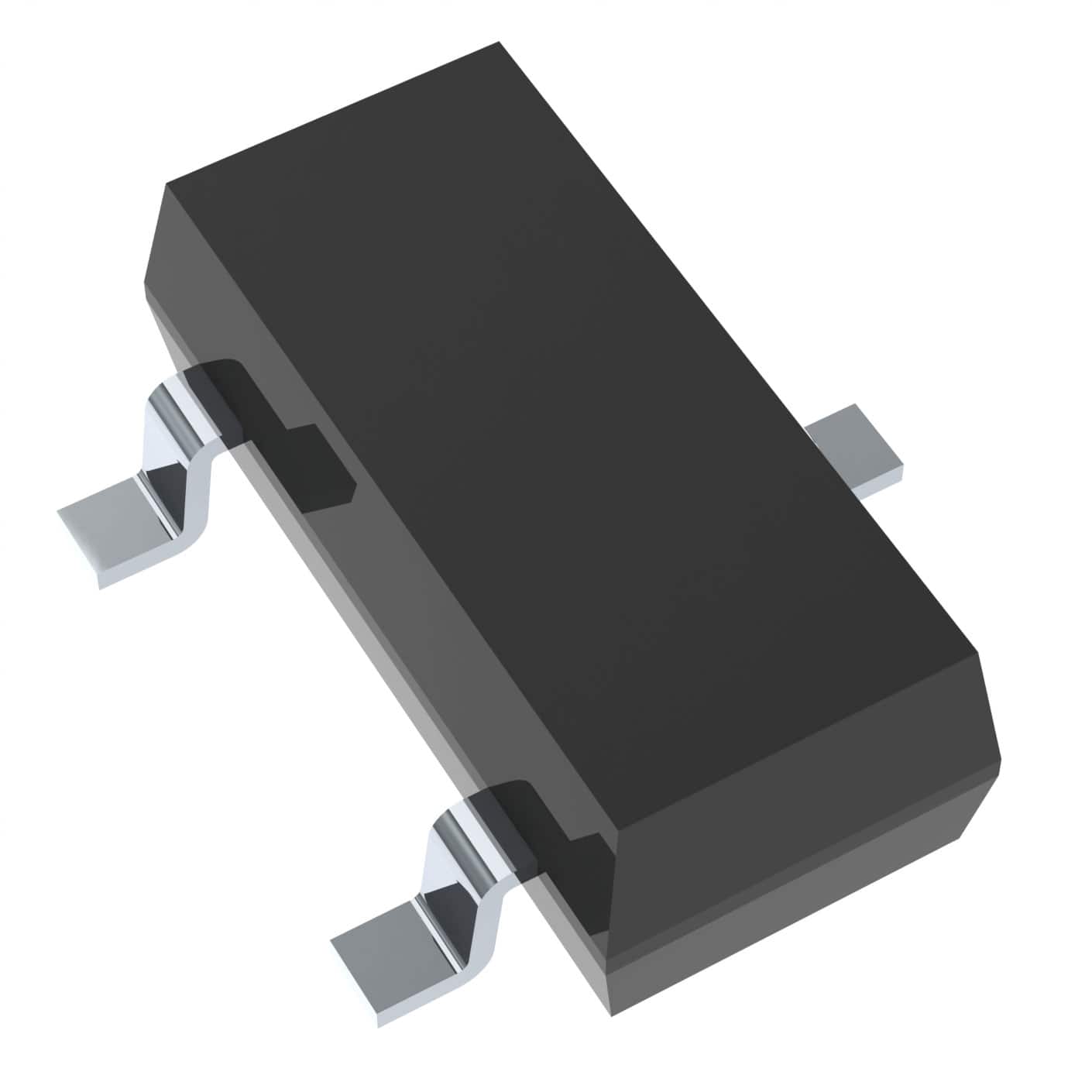

The BAS70-04-E3-18 from Vishay Dale is a Schottky diode array configured as two diodes in series. It is designed for small signal applications with a maximum average rectified current of up to 200mA. The device features a fast reverse recovery time of 5ns, making it suitable for high-speed switching circuits.
The diode array has a forward voltage of 1V at a test current of 15mA and a reverse leakage current of 100nA at 50V. It operates over a wide temperature range from -55°C to 125°C, ensuring reliability in various environments.
The component is supplied in a surface mount package, available in TO-236-3, SC-59, or SOT-23-3 case styles, with the SOT-23-3 as the supplier device package. This compact footprint allows for efficient use of PCB space in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
| 10+ | $0.27 | $0.27 |
| 100+ | $0.17 | $0.17 |
| 500+ | $0.13 | $0.13 |
| 1,000+ | $0.10 | $0.10 |
| 10,000+ | $0.07 | $0.07 |
| 20,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
70V.
1V.
5ns.
SOT-23-3 (supplier device package), also available in TO-236-3 and SC-59.
1 pair series connection.
-55°C to 125°C.
100nA.
