BAS40LP-7B-36 The Diodes Incorporated BAS40LP-7B-36 is a Schottky diode designed for various electronic applications. It offers a 40V reverse voltage and 200mA forward current.
Mfr Part #:

BAS40LP-7B-36

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated BAS40LP-7B-36 is a Schottky diode designed for various electronic applications. It offers a 40V reverse voltage and 200mA forward current.
✓ Total Stock: 6,000 pcs
$ Price Range: $0.40

BAS40LP-7B-36 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request 1928+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BAS40LP-7B-36 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance @ Vr, F
Mounting Type
Operating Temperature
Reverse Recovery Time (trr)
SVHC Present
Speed
Technology
View Similar Products (0)

BAS40LP-7B-36 Description

Short technical summary and product information.

The Diodes Incorporated BAS40LP-7B-36 is a Schottky rectifier diode with a maximum reverse voltage rating of 40V and an average rectified current of 200mA. It features a fast recovery time of 5ns and a low forward voltage drop of 1V at 40mA.

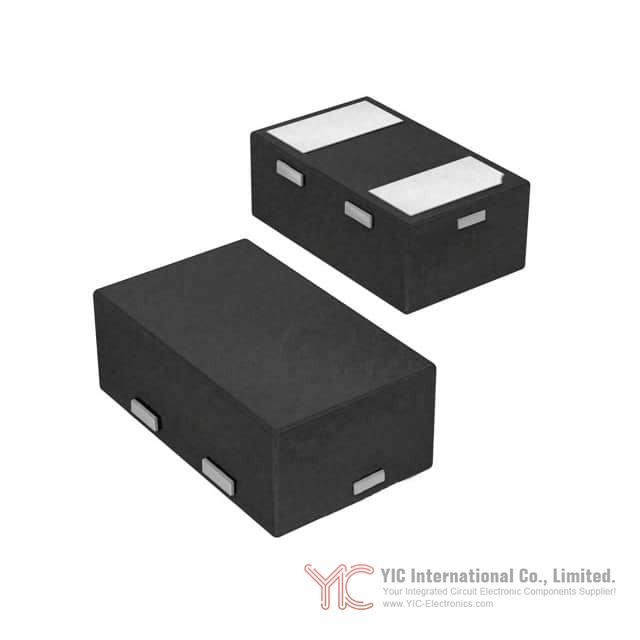

This diode is housed in an X1-DFN1006-2 surface mount package, also known as 0402 (1006 Metric). Its compact size and surface mount capability make it suitable for space-constrained applications. The operating temperature range is from -55°C to 150°C.



Key electrical characteristics include a reverse leakage current of 200nA at 30V and a diode capacitance of 2.3pF at 0V and 1MHz. The Schottky technology ensures efficient rectification and fast switching performance.

BAS40LP-7B-36 Quick Information

Product Type: Schottky Diode
Series: BAS40
Canonical Name: BAS40LP-7B-36 Schottky Diode
Subcategory: Rectifier

BAS40LP-7B-36 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BAS40LP-7B-36 Estimated Pricing

Qty Low High
1+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

BAS40LP-7B-36 Features

  • 40V maximum reverse voltage rating.
  • 200mA average rectified current.
  • 5ns fast reverse recovery time.
  • Schottky technology for efficiency.
  • Surface mount X1-DFN1006-2 package.

BAS40LP-7B-36 Applications

  • Suitable for high-frequency rectification.
  • Ideal for power supply circuits.
  • Used in signal demodulation.
  • Applicable in voltage clamping circuits.

BAS40LP-7B-36 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the BAS40LP-7B-36?

The maximum reverse voltage (Vr) for the BAS40LP-7B-36 is 40V.

What is the forward voltage of the BAS40LP-7B-36 at 40mA?

The typical forward voltage (Vf) at 40mA for the BAS40LP-7B-36 is 1V.

What is the average rectified current for the BAS40LP-7B-36?

The average rectified current (Io) for the BAS40LP-7B-36 is 200mA.

What is the reverse recovery time of the BAS40LP-7B-36?

The reverse recovery time (trr) for the BAS40LP-7B-36 is 5ns.

What type of diode is the BAS40LP-7B-36?

The BAS40LP-7B-36 is a Schottky diode.

What is the operating temperature range for the BAS40LP-7B-36?

The operating junction temperature range for the BAS40LP-7B-36 is -55°C to 150°C.

What package is the BAS40LP-7B-36 supplied in?

The BAS40LP-7B-36 is supplied in an X1-DFN1006-2 package, also known as 0402 (1006 Metric), on tape and reel.
