The BAS40-05 from Philips is a general-purpose silicon Schottky diode engineered for applications requiring high-speed switching. Its robust design makes it suitable for circuit protection, voltage clamping, and high-level detecting and mixing.
Key electrical characteristics include a maximum reverse voltage of 40V and a continuous forward current rating of 120mA. The diode exhibits a typical forward voltage of 380mV at 1mA and 600mV at 10mA. Its low capacitance of 5pF at 1MHz and fast switching speed, indicated by a charge carrier life time of 100ps, contribute to its efficiency in high-frequency applications.
This component is housed in a compact SOT23 surface-mount package, facilitating integration into dense electronic designs. The operating and storage temperature range is -55°C to 150°C, ensuring reliability across various environmental conditions. The device is Pb-free, aligning with environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 40V.
The maximum forward current is 120mA.
The forward voltage is 600mV maximum at 10mA.

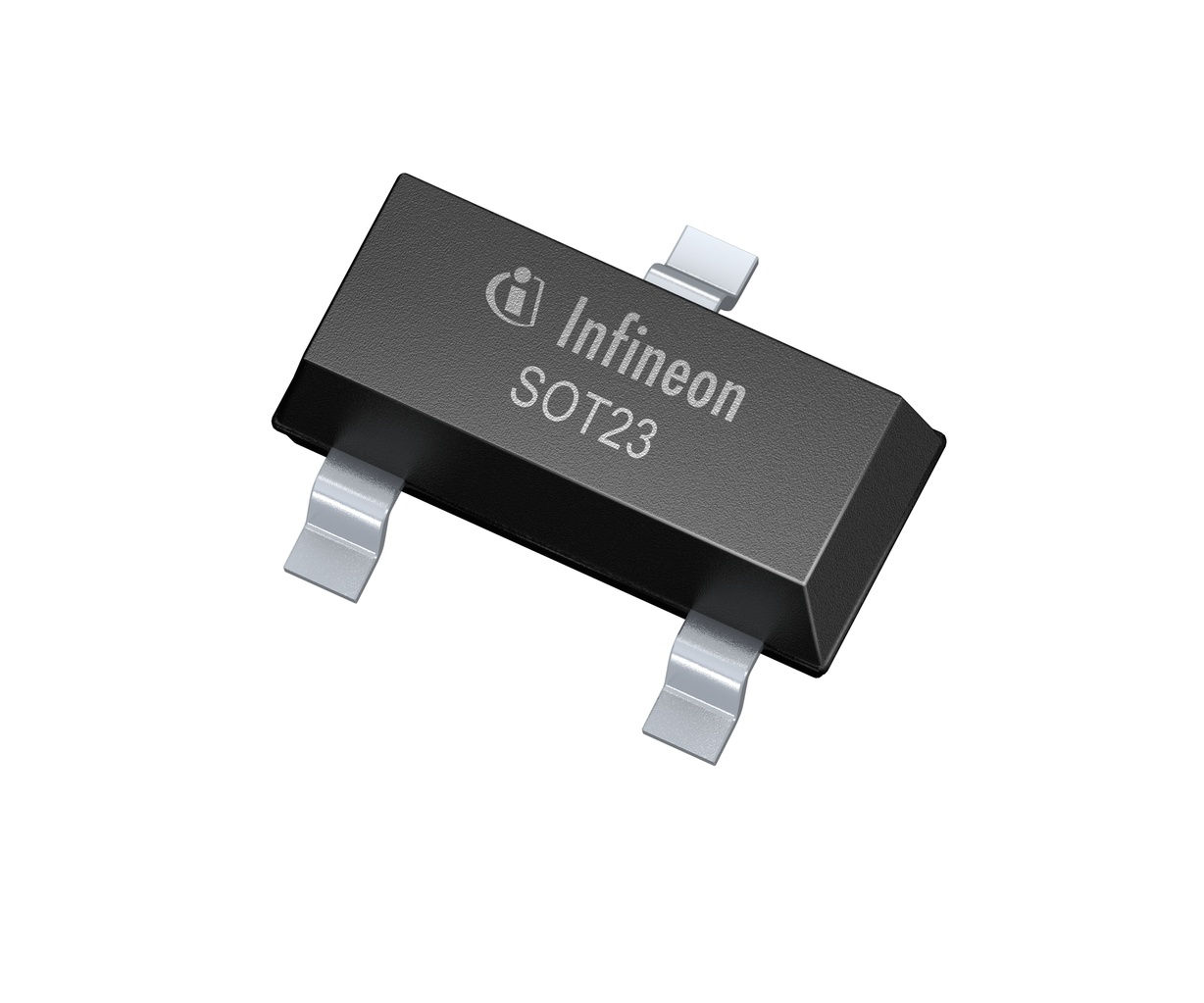

The BAS40-05 is available in a SOT23 surface-mount package.
The operating temperature range is -55°C to 150°C.
The reverse leakage current is 1µA maximum at 30V reverse voltage.
The diode capacitance is 5pF maximum at 0V bias and 1MHz.
