| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,786 pcs
|
1786 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Forward Current | |
| Industrial Grade | |
| Junction Temperature | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Current | |
| Storage Temperature | |
| Tape & Reel |
The Infineon BAR63-04 is a silicon PIN diode engineered for high-speed switching of RF signals up to 3GHz. It features very low forward resistance, contributing to low insertion loss, and very low capacitance, providing high isolation.
Key electrical characteristics include a maximum reverse voltage of 50V and a maximum forward current of 100mA. The typical forward voltage is 0.95V at 100mA. Diode capacitance is typically 0.3pF at 5V and 1MHz, and 0.21pF at 0V and 100MHz-1.8GHz. The forward resistance is low, typically 1.2 Ohms at 5mA and 100MHz.

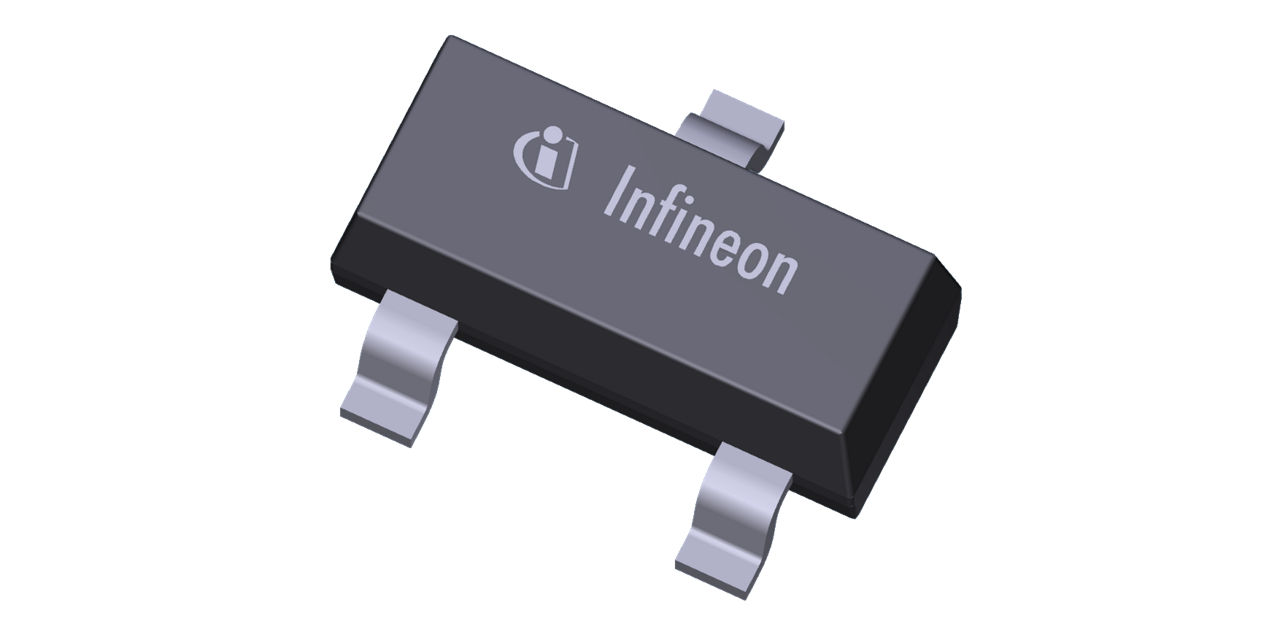

This PIN diode is qualified according to AEC-Q101 and comes in a Pb-free (RoHS compliant) package. The SOT23 package is suitable for surface mount applications.
Applications include high-speed RF switching circuits where low insertion loss and high isolation are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.77 | $1.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage is 50 V.
The typical forward voltage is 0.95 V at 100 mA.
The diode capacitance is 0.3 pF at 5 V and 1 MHz.
The typical forward resistance is 2 Ω at 10 mA and 100 MHz.
The package type is SOT23.
Yes, it is RoHS3 Compliant.
