| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,100 pcs
|
5100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Phase Difference | |
| Return Loss (Min) |

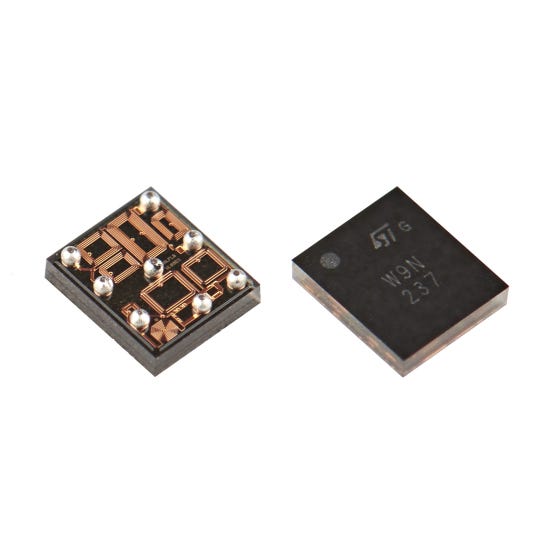

The BALFLB-WL-09D3 from STMicroelectronics is a balun component used for filtering and matching in RF applications. It operates within a specified frequency range of 470MHz to 510MHz.
Key electrical characteristics include a minimum return loss of 14dB and a maximum insertion loss of 2.15dB. The component also features a phase difference of 0°.
This balun is designed for surface mount applications and comes in an 8-WFBGA, CSPBGA package. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended conditions.
This part is suitable for various RF designs requiring signal filtering and impedance matching within its specified frequency band.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency range is 470MHz to 510MHz.
The minimum return loss is 14dB.
The maximum insertion loss is 2.15dB.
The package type is 8-WFBGA, CSPBGA.
It is a surface mount component.
