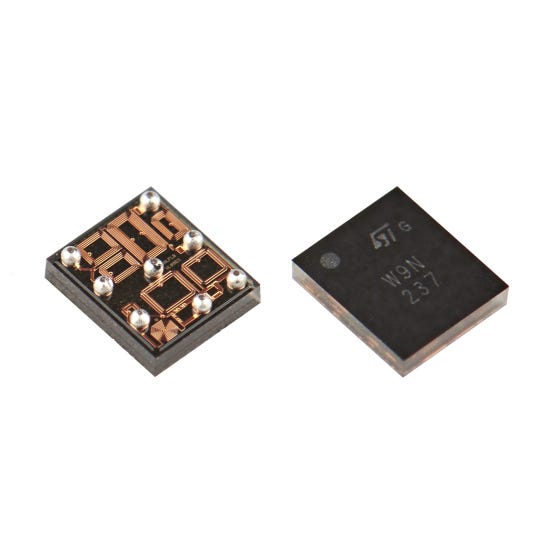

BALFHB-WL-03D3
STMicroelectronics
The STMicroelectronics BALFHB-WL-03D3 is an integrated filter matched balun designed for RF applications. It operates within a frequency range of 862MHz to 928MHz.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,000 pcs
|
35000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Phase Difference | |
| Return Loss (Min) |
The STMicroelectronics BALFHB-WL-02D3 is an integrated filter matched balun. This component is designed for use in RF applications, operating within a frequency range of 862MHz to 928MHz.
Key electrical specifications include a minimum return loss of 14dB and a maximum insertion loss of 1.4dB. The phase difference is 0°. The balun is housed in an 8-WFBGA, CSPBGA package and is designed for surface mount installation.
This balun is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. REACH status is unaffected. Its compact size and surface mount capability make it suitable for integration into various RF circuits where space is a consideration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The frequency range is 862MHz to 928MHz.
The minimum return loss is 14dB.
The maximum insertion loss is 1.4dB.
The phase difference is 0°.
It is in an 8-WFBGA, CSPBGA package.
It is a surface mount component.
