| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,300 pcs
|
5300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Phase Difference | |
| Return Loss (Min) | |
| Storage Temperature | |
| Tape & Reel |

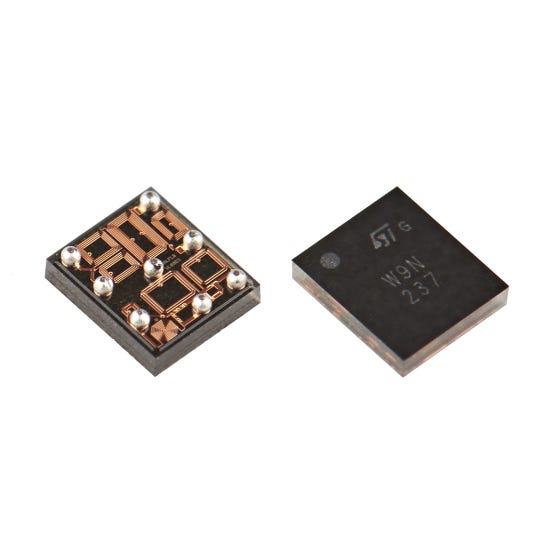

The STMicroelectronics BALFHB-WL-01D3 is an integrated filter matched balun, categorized under RFIF and RFID components. This balun operates within a frequency range of 862MHz to 928MHz, offering a minimum return loss of 14dB and a maximum insertion loss of 1.6dB. It features a phase difference of 0°.
The component is designed for surface mount applications and comes in an 8-WFBGA, CSPBGA package. Its RoHS3 compliance status indicates adherence to current environmental regulations, though this status is unverified and should be treated with low confidence. The Moisture Sensitivity Level (MSL) is rated as 1 Unlimited, also with low confidence due to unverified data.
This balun is suitable for various RF designs requiring signal conditioning and impedance matching. Its specifications suggest utility in wireless communication modules and other high-frequency circuits where precise phase and amplitude control are necessary.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BALFHB-WL-01D3 operates within a frequency range of 862MHz to 928MHz.
The minimum return loss for the BALFHB-WL-01D3 is 14dB.
The maximum insertion loss for the BALFHB-WL-01D3 is 1.6dB.
The BALFHB-WL-01D3 is supplied in an 8-WFBGA, CSPBGA package.
This component is designed for surface mount installation.
