| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Phase Difference | |
| Return Loss (Min) | |
| Storage Temperature | |
| Tape & Reel |

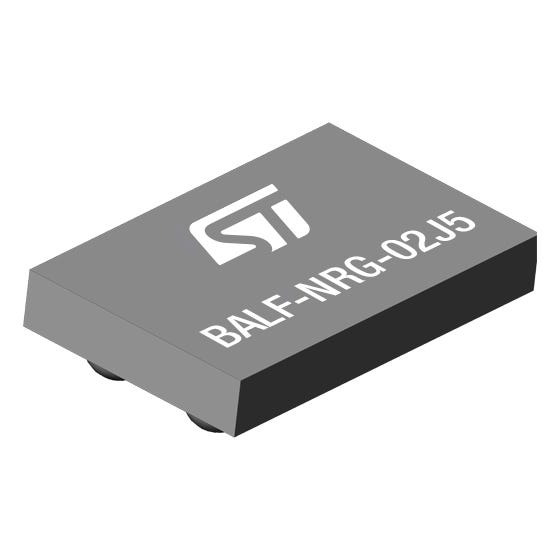

The STMicroelectronics BALF-NRG-02J5 is a balun component with a 50 Ohm impedance, suitable for RF signal processing. It operates across a frequency range of 2.4GHz to 2.5GHz, offering a minimum return loss of 26dB and a maximum insertion loss of 1.65dB. The component features a phase difference of 4.5 degrees.
This balun is designed for surface mount applications and comes in a 4-XFBGA, FCBGA package. Its impedance is rated at 50/50 Ohms. The product is described as RoHS3 Compliant, with an MSL rating of 1 Unlimited, and REACH Unaffected status.
This balun is suitable for applications requiring precise impedance matching and signal integrity within the specified frequency band. Its surface mount design facilitates integration into compact electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BALF-NRG-02J5 balun operates within a frequency range of 2.4GHz to 2.5GHz.
The BALF-NRG-02J5 has a minimum return loss of 26dB.
The maximum insertion loss for the BALF-NRG-02J5 is 1.65dB.
The impedance of the BALF-NRG-02J5 is 50/50 Ohms.
The BALF-NRG-02J5 is available in a 4-XFBGA, FCBGA package.
The BALF-NRG-02J5 is a surface mount device.
