| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Return Loss (Min) | |
| Storage Temperature | |
| Tape & Reel |

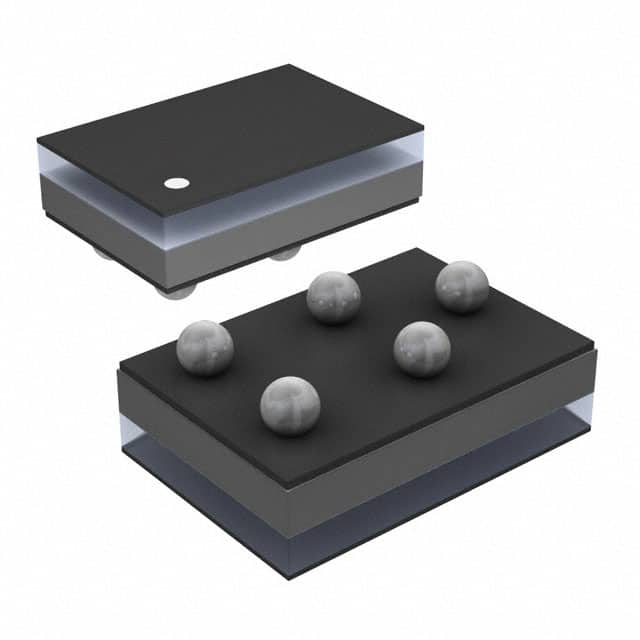

The STMicroelectronics BALF-CC26-05D3 is a balun component operating within the 2.4GHz to 2.5GHz frequency range. It is designed with a 50/50 Ohm impedance, offering a minimum return loss of -23dB and a maximum insertion loss of 1.2dB. This balun is housed in a 5-UFBGA, CSPBGA package and is intended for surface mount applications.
This component is suitable for RF applications requiring signal balancing and impedance matching within the specified frequency band. Its compact package and surface mount capability facilitate integration into various electronic designs. The RoHS3 compliant status indicates adherence to environmental regulations regarding hazardous substances.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BALF-CC26-05D3 balun operates from 2.4GHz to 2.5GHz.
The impedance is 50/50 Ohm.
The minimum return loss is -23dB.
The maximum insertion loss is 1.2dB.
It is supplied in a 5-UFBGA, CSPBGA package.
It is designed for surface mount installation.
Yes, it is RoHS3 Compliant.
