| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Frequency Range | |
| Impedance | |
| Insertion Loss (Max) | |
| Mounting Type | |
| Phase Difference | |
| Return Loss (Min) | |
| Storage Temperature | |
| Tape & Reel |

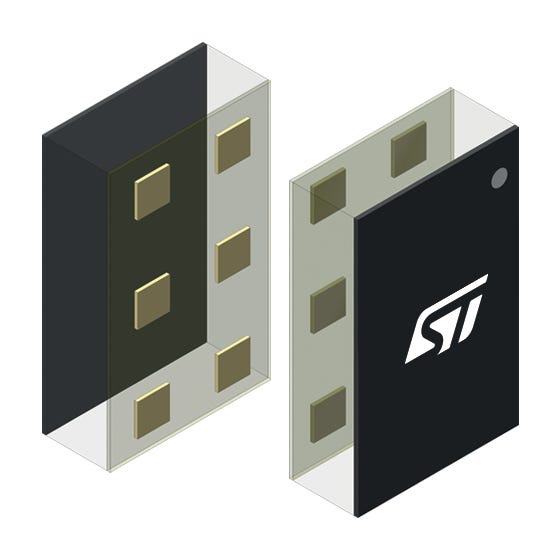

The STMicroelectronics BALF-ATM-01E3 is a balun designed for RF applications, operating within the 2.4GHz to 2.5GHz frequency range. This component offers a balanced impedance of 50/50 Ohms, with a maximum insertion loss of 1.3dB and a minimum return loss of 15dB. The phase difference is specified at 9 degrees.
This balun is housed in a 6-SMD, No Lead package and is designed for surface mounting, making it suitable for integration into compact electronic designs. Its specifications suggest suitability for wireless communication systems and other RF circuits requiring impedance matching and signal balancing.
The RoHS 3 compliance indicates adherence to certain environmental standards, though specific verification details are not provided in the available data. The Moisture Sensitivity Level (MSL) is rated at 1, signifying unlimited shelf life under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BALF-ATM-01E3 balun operates in the frequency range of 2.4GHz to 2.5GHz.
The maximum insertion loss for the BALF-ATM-01E3 is 1.3dB.
The minimum return loss for the BALF-ATM-01E3 is 15dB.
The impedance of the BALF-ATM-01E3 is 50/50 Ohms.
The BALF-ATM-01E3 comes in a 6-SMD, No Lead package.
The BALF-ATM-01E3 is designed for surface mounting.
The BALF-ATM-01E3 is RoHS 3 Compliant.
