| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

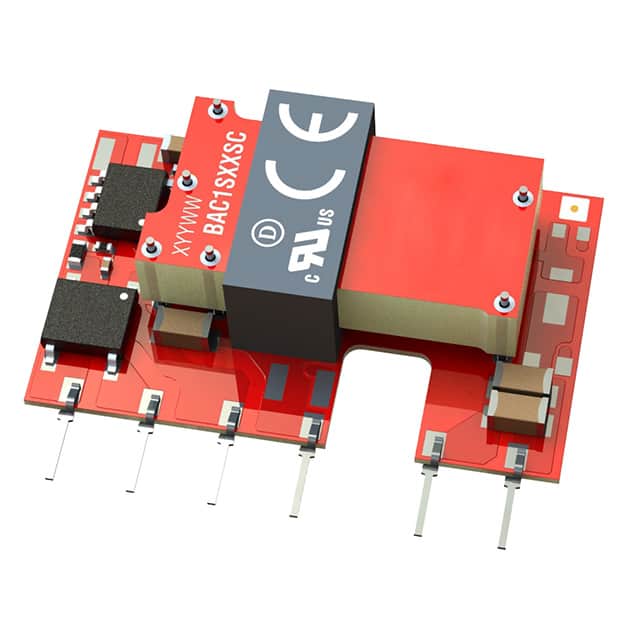

The Murata BAC1S05SC is an open frame AC/DC converter designed for versatile power supply applications. It delivers a stable 5V output with a power rating of 1W and a current capability of 200mA.
This converter operates with a wide input voltage range of 85 to 305 VAC or 70 to 400 VDC, offering flexibility for various power sources. Its efficiency is rated at 74%, making it suitable for applications where power conservation is important. The unit features universal input and is designed for through-hole mounting, simplifying integration into circuit boards.
With a compact size measuring 33.5mm x 10.0mm x 21.4mm, the BAC1S05SC is suitable for space-constrained designs. It operates reliably within an extended temperature range of -40°C to 85°C. The converter is approved by CE, cURus, and DEMKO, indicating compliance with relevant safety and performance standards.
Applications for the BAC1S05SC include household appliances, ITE (commercial) equipment, and medical devices, where a reliable and compact power solution is required.
85 to 305 VAC or 70 to 400 VDC.
12-SIP Module, 6 Leads, Through Hole mounting.
-40°C to 85°C.
5V.
200mA.
74%.
