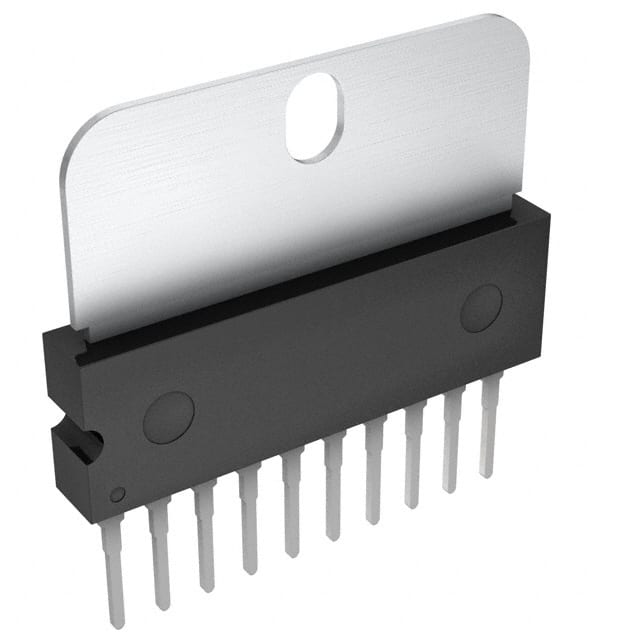

The BA6209 is a reversible motor driver IC manufactured by ROHM Semiconductor, suitable for applications involving brush motors. It offers three output modes: forward, reverse, and braking, controlled by two logic inputs. The motor's revolving speed can be adjusted by controlling the voltage applied to the motor via the control pin (VR).
Key features include power transistors capable of handling up to 1.6A maximally, built-in rush current absorption for reversing and braking, and a motor speed control pin. The device operates with CMOS technology and has a small standby current. It is packaged in a 10-SIP Exposed Tab and mounted via a Through Hole configuration. The operating temperature range is -20°C to 75°C.
This motor driver is designed for applications such as VCRs and cassette tape recorders, providing stable operation during mode changes and interfacing with CMOS devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output current is 1.6A.
The supply voltage range is 6V to 18V.
The operating temperature range is -20°C to 75°C.
The BA6209 is available in a 10-SIP Exposed Tab package with through-hole mounting.
It is a fully integrated brushed DC motor driver with a half-bridge output configuration.
The typical standby current is 5.5mA at VCC = 12V.
