BA3823LS The BA3823LS is a five-channel stereo graphic equalizer IC from ROHM Semiconductor operating from 3.5V to 14V supply voltage.
Mfr Part #:

BA3823LS

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The BA3823LS is a five-channel stereo graphic equalizer IC from ROHM Semiconductor operating from 3.5V to 14V supply voltage.
✓ Total Stock: 6,898 pcs

BA3823LS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,898 pcs
On Request
6898 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BA3823LS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Function
Interface
Mounting Type
Number of Channels
Operating Temperature
SVHC Present
Supplier Device Package
Voltage
View Similar Products (0)

BA3823LS Description

Short technical summary and product information.

The BA3823LS is a monolithic five-point stereo graphic equalizer IC from ROHM Semiconductor. It operates over a wide supply voltage range of 3.5V to 14V and typically draws only 7 mA of supply current. The IC provides five independent channels for equalization, with center frequencies set by external capacitors.

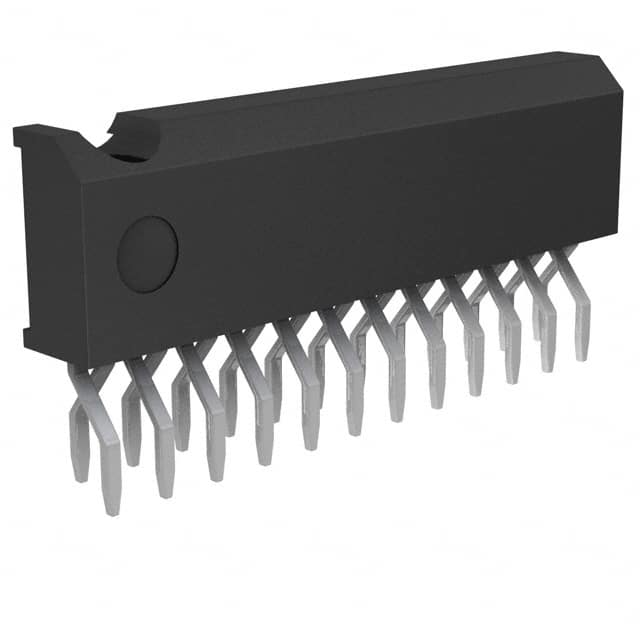

The BA3823LS is designed for automotive and consumer audio applications including home stereo systems and car stereos. The device is housed in a 24-SIP formed leads package (24-SZIP) with through-hole mounting. It features an analog interface and excellent ripple rejection, allowing the omission of an external ripple filter in some designs.

BA3823LS Quick Information

Product Type: Audio Special Purpose IC
Canonical Name: ROHM Semiconductor BA3823LS Audio Tone Processor
Subcategory: Audio Special Purpose

BA3823LS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BA3823LS Features

  • Wide supply voltage range 3.5V~14V.
  • Low current dissipation 7 mA typical.
  • Five independent audio tone channels.
  • Through hole mounting 24-SZIP package.
  • Excellent ripple rejection circuit design.

BA3823LS Applications

  • Five-point stereo graphic equalizer for home audio.
  • Used in car stereo audio systems.
  • Ideal for radio cassette players.
  • Single IC stereo equalizer construction.

BA3823LS FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage range for the BA3823LS?

The BA3823LS operates from 3.5V to 14V.

How many channels does the BA3823LS have?

It has 5 channels.

What is the BA3823LS used for?

It is an audio tone processor for automotive and consumer audio applications.

What package does the BA3823LS come in?

It is available in a 24-SIP formed leads through-hole package (24-SZIP).

What is the operating temperature range?

The operating temperature range is -25°C to 75°C.
