| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,873 pcs
|
1873 pcs | On Request | 1 | On Request | On Request | 10+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Halogen Free | |
| Industrial Grade | |
| Input Voltage | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| SVHC Present | |
| Storage Temperature |

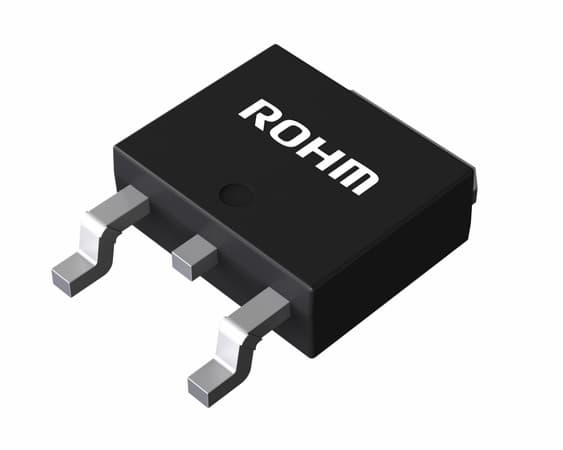

The BAxxBC0 series, including the BA33BC0FP-E2, are low-saturation regulators from ROHM Semiconductor designed for applications requiring a stable output voltage with high accuracy. These regulators offer an output current of up to 1.0 A and feature an output voltage accuracy of ±2%.
A broad output voltage range is available, typically from 1.5V to 10V for fixed output versions, and variable options are also offered. The integrated overcurrent protection and thermal shutdown (TSD) circuits are crucial design features that prevent damage to the device and the system in case of short-circuiting or overloading conditions.
These regulators are suitable for a wide array of electronic devices that utilize microcontrollers and logic circuits. They are available in various package types, including TO252-3, TO252-5, TO220CP-V5, TO220FP-3, TO220FP-5, and TO220FP-5(V5), allowing for flexibility in board design and thermal management.
The BAxxBC0 series operates within an input voltage range up to 16.0V and an operating temperature range of -40°C to +105°C, making them robust for various environmental conditions. Some variants also include an integrated shutdown switch for power management.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum input power supply voltage is 16.0V.
The maximum output current is 1A.
The output voltage accuracy is ±2%.
The operating temperature range is -40°C to +105°C.
It has built-in overcurrent protection and thermal shutdown circuits.
Available packages include TO252-3, TO252-5, TO220CP-V5, TO220FP-3, TO220FP-5, and TO220FP-5(V5).
