BA12T The ROHM Semiconductor BA12T is a fixed positive output, low drop-out voltage regulator IC. It provides a stabilized 12V output at up to 1A.
Mfr Part #:

BA12T

Available from 1 distributors
Mfr Name: ROHM Semiconductor
ROHM Semiconductor
The ROHM Semiconductor BA12T is a fixed positive output, low drop-out voltage regulator IC. It provides a stabilized 12V output at up to 1A.
✓ Total Stock: 516 pcs
$ Price Range: $0.30

BA12T Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
516 pcs
On Request
516 pcs On Request 1 On Request On Request 12+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BA12T Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Current
Output Type
PSRR
Protection Features
Storage Temperature
Supplier Device Package
Voltage
View Similar Products (0)

BA12T Description

Short technical summary and product information.

The BA12T from ROHM Semiconductor is a member of the BAOOT/FP series of fixed positive output, low drop-out voltage regulators. This 3-pin regulator is designed to provide a stabilized output voltage from a fluctuating DC input voltage.



Key electrical specifications include a 12V fixed output voltage and a maximum output current capacity of 1A. The device operates with an input voltage range from 13V to 25V and features built-in overvoltage protection, overcurrent protection, and thermal shutdown circuits. Its PSRR is rated at 55dB at 120Hz.



The BA12T is available in a TO-220FP package, suitable for through-hole mounting. The operating temperature range is -40°C to 85°C. This regulator is compatible with the BA17800 series and offers a low minimum I/O voltage differential, making it suitable for various power supply applications.

BA12T Quick Information

Product Type: Voltage Regulator
Series: BAOOT / FP series
Canonical Name: BA12T Fixed Positive Output Voltage Regulator
Subcategory: Linear

BA12T Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BA12T Estimated Pricing

Qty Low High
1+ $0.30 $0.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

BA12T Features

  • Fixed 12V positive output voltage.
  • Maximum output current of 1A.
  • Built-in overvoltage protection circuit.
  • Built-in overcurrent protection circuit.
  • Built-in thermal shutdown circuit.

BA12T Applications

  • Provides fixed 12V output rail.
  • Regulates 13-25V input down to 12V.
  • Used in through-hole power supply boards.
  • Suitable for general-purpose 12V regulation.

BA12T FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of BA12T?

The input voltage range is 13V to 25V.

What is the output voltage of BA12T?

The output voltage is fixed at 12V.

What is the maximum output current of BA12T?

The maximum output current is 1A.

What package is BA12T available in?

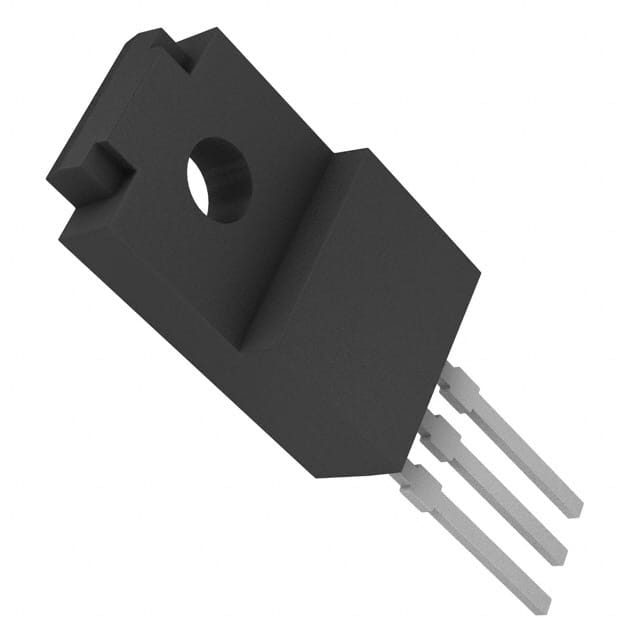

BA12T is available in a TO-220FP (TO-220-3 full pack) through-hole package.

What is the operating temperature range of BA12T?

The operating temperature range is -40°C to 85°C.

What protection features does BA12T include?

BA12T includes overcurrent, overvoltage, and overtemperature protection.

What is the PSRR of BA12T?

The PSRR is 55dB at 120Hz.
