| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | 9823P/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Slew Rate | |
| Supplier Device Package |
The BA10324AF-E2 is a general purpose amplifier IC manufactured by Rohm Semiconductor. This component features 4 independent circuits within a single package, making it suitable for various amplification tasks.
Key electrical specifications include a wide supply voltage range from 3V to 32V, a slew rate of 0.2V/µs, and a gain bandwidth product of 500 kHz. It also offers a low input bias current of 20 nA and an input offset voltage of 2 mV. The device consumes a supply current of 600µA and can deliver up to 35 mA of output current per channel.

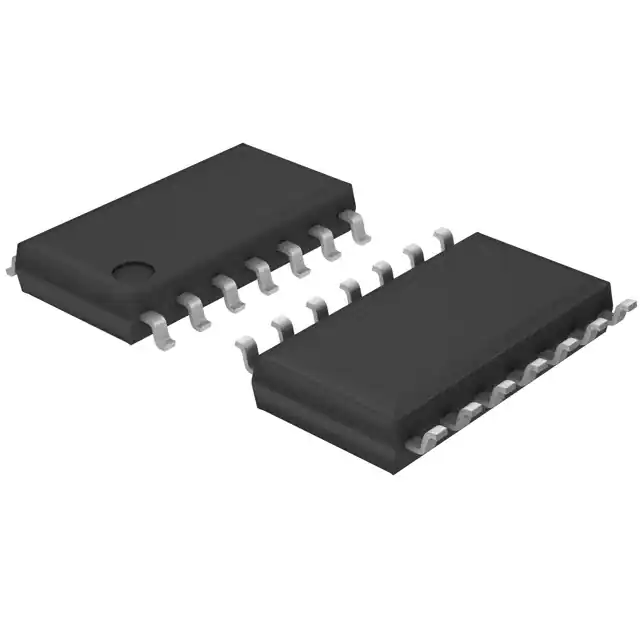

Designed for surface mounting, the BA10324AF-E2 comes in a 14-SOIC package with specific dimensions of 0.173 inches (4.40mm) width. The operating temperature range is -40°C to 85°C, ensuring reliable performance in diverse environmental conditions. The package is available in Tape & Reel (TR) or Cut Tape (CT) formats, with a standard package quantity of 2500 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 3V to 32V.
The BA10324 is available in a 14-SOIC (0.173, 4.40mm Width) surface mount package.
The operating temperature range is -40°C to 85°C.
The gain bandwidth product is 500 kHz.
The slew rate is 0.2 V/µs.
The BA10324 contains four independent amplifier circuits.
The input offset voltage is 2 mV.
