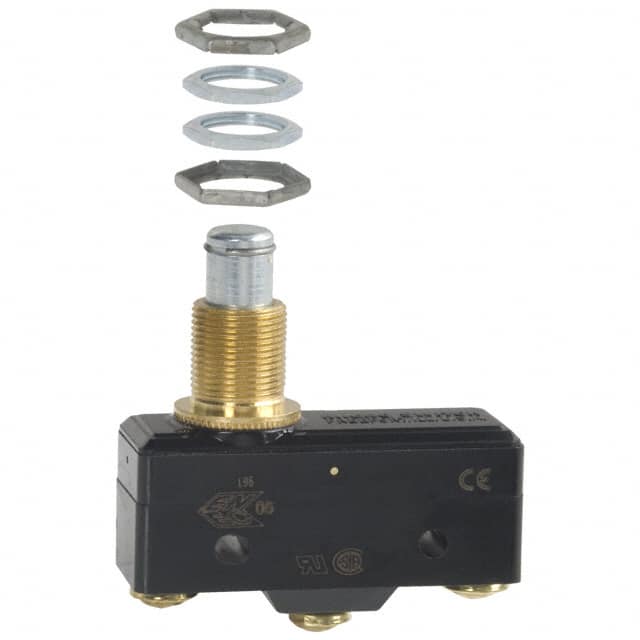

The Honeywell BA-2RQ1-A2 is a robust limit switch from the Premium Series, designed for reliable operation in various applications. It features a Single Pole Double Throw (SPDT) contact configuration, suitable for On-Mom switching functions.
This switch is engineered with an overtravel plunger actuator and offers a current rating of 20A at 125V AC, with a DC rating of 500mA. The operating temperature range is specified from -55°C to 85°C, ensuring performance in demanding environments. Key mechanical specifications include a pretravel of 0.050" (1.27mm), an overtravel of 0.219" (5.6mm), and a differential travel of 0.002" (0.05mm). The operating force ranges from 397 to 624 gf.
Designed for panel mounting, the BA-2RQ1-A2 utilizes screw terminals for electrical connections. It is part of the BA series, known for its precision and long life. The switch is built with silver contacts for reliable conductivity.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status, though these are noted as unverified in the database. The standard package quantity is 50 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -55°C to 85°C.
The BA-2RQ1-A2 switch features an overtravel plunger actuator.
The switch has a current rating of 20A for AC and 500mA for DC.
The voltage rating is 125V AC.
The switch has a SPDT contact form.
The switch is designed for chassis mount.
