| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
94 pcs
|
94 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

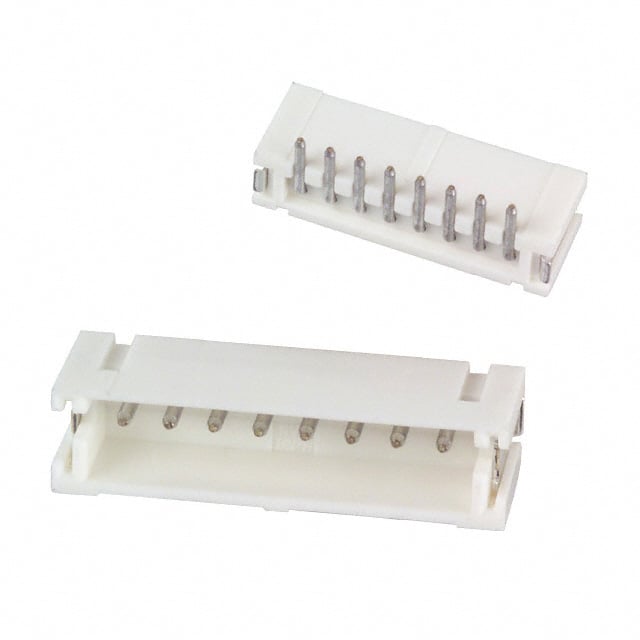

The JST B8B-ZR-SM4-TFT(LF)(SN) is a wire-to-board connector from the ZR series, featuring a 1.5mm pitch in a single row. This shrouded header with 8 positions provides a robust 4-wall design with detent lock fastening for secure mating. The male pins are made of brass with a tin finish, ensuring reliable conductivity. The insulation material is polyamide (PA6T) glass-filled, natural color, with a UL94 V-0 flammability rating. It is rated for 1A current and 50V voltage, operating over a temperature range of -25°C to 85°C. The surface mount design includes solder retention and is compatible with pick-and-place assembly, making it suitable for compact electronic applications. Termination is by solder, and the header is fully loaded with all positions active.
This header has 8 positions.
The pitch is 1.50mm (0.059 inches).
The current rating is 1A.
The voltage rating is 50V.
Surface Mount with solder termination.
-25°C to 85°C.
Brass contact with Tin finish.
