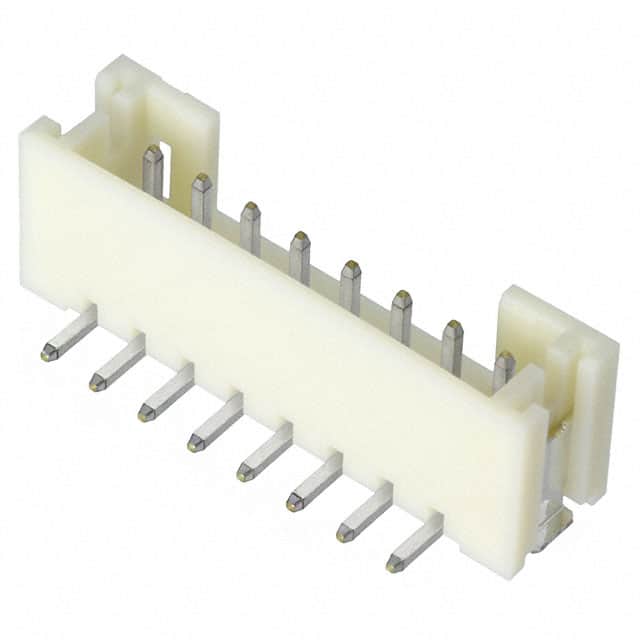

The B8B-PH-SM4-TB(LF)(SN) is an 8-position, single-row surface mount header from JST Manufacturing's PH series. It features a 2.00mm pitch and a shrouded 4-wall design for reliable mating with cable connectors. The header uses male square pins with tin-plated copper alloy contacts and a polyamide (PA6T) insulator in natural color.
Electrical ratings include 2A current capacity and 100V voltage rating, with an operating temperature range of -25°C to 85°C. The insulation material is rated UL94 V-0 for flammability. Mechanical features include a detent lock for secure cable retention and solder retention for reliable surface mount attachment.
This board-to-cable/wire style connector is suitable for compact electronic assemblies where space is limited. The surface mount termination with solder retention ensures robust PCB mounting. Compliance with RoHS, REACH, and MSL 1 is indicated but unverified.
8 positions.
2.00mm.
2A.
100V.
Surface Mount.
-25°C to 85°C.
Polyamide (PA6T), Nylon 6T.
