| Category | |
| Manufacturer Name | |
| Capacitance | |
| Fail Short | |
| Impulse Discharge Current (8 | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Voltage | |
| Weight |

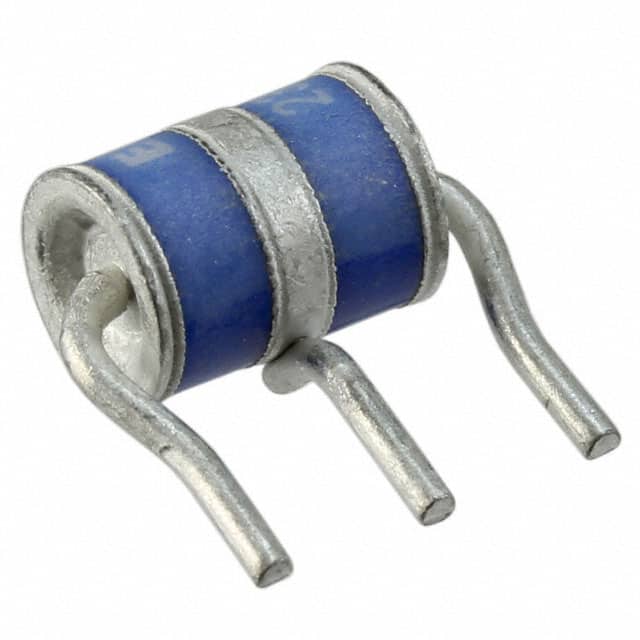

The TDK T33-A230X is a 3-electrode gas discharge tube (GDT) designed for surge protection in telecommunication and industrial applications. It features a DC spark-over voltage of 230V ±20% (184V min, 276V max) and an impulse spark-over voltage typically below 440V at 1kV/µs rise rate. The device can handle impulse discharge currents of 10kA (8/20µs waveform) for up to 10 operations and 2kA for a single 10/350µs surge. Key electrical characteristics include very low capacitance (<1.5pF at 1MHz), high insulation resistance (>10GΩ at 50VDC), and fast response time with transverse delay time less than 0.2µs. The GDT is packaged in an axial cylinder with three leads (radial bend) for through-hole mounting. It operates over a temperature range of -40°C to +125°C and is RoHS-compatible. Typical applications include line protection, station protection, and base station surge suppression.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.99 | $1.99 |
| 10+ | $1.83 | $1.83 |
| 50+ | $1.52 | $1.52 |
| 100+ | $1.41 | $1.41 |
| 250+ | $1.26 | $1.26 |
| 500+ | $1.15 | $1.15 |
| 1,000+ | $1.06 | $1.06 |
| 5,000+ | $0.95 | $0.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
230V ±20% (184V min, 276V max).
Axial Cylinder, 3 Lead (Radial Bend) for through-hole mounting.
-40°C to +125°C.
Yes, it is RoHS-compatible as per the datasheet.
10kA for 8/20µs waveform (10 operations) and 2kA for 10/350µs (1 operation).
Less than 1.5pF at 1MHz.
Greater than 10GΩ at 50VDC.
