| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AC Discharge Current (Nominal @ 50 Hz, 0.18 s (9 cycl.), 1 operation) | |
| AC Discharge Current (Nominal @ 50 Hz, 1 s, 10 operations) | |
| Arc Voltage | |
| Capacitance | |
| Climatic Category | |
| DC Spark Over Voltage (Minimum/Typical/Nominal/Maximum) | |
| Fail Short | |
| Glow Voltage | |
| Glow to Arc Transition Current | |
| Impulse Discharge Current (8 | |
| Impulse Discharge Current (Nominal @ 10/350 µs, 1 operation) | |
| Impulse Discharge Current (Nominal @ 8/20 µs) | |
| Impulse Discharge Current (Nominal @ 8/20 µs, 10 operations) | |
| Impulse Discharge Current (Nominal @ 8/20 µs, 2 operations) | |
| Impulse Spark Over Voltage (Typical/Maximum @ 1 kV/µs) | |
| Impulse Spark Over Voltage (Typical/Maximum @ 100 V/µs) | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Termination Style | |
| Transverse Delay Time | |
| Voltage | |
| Weight |

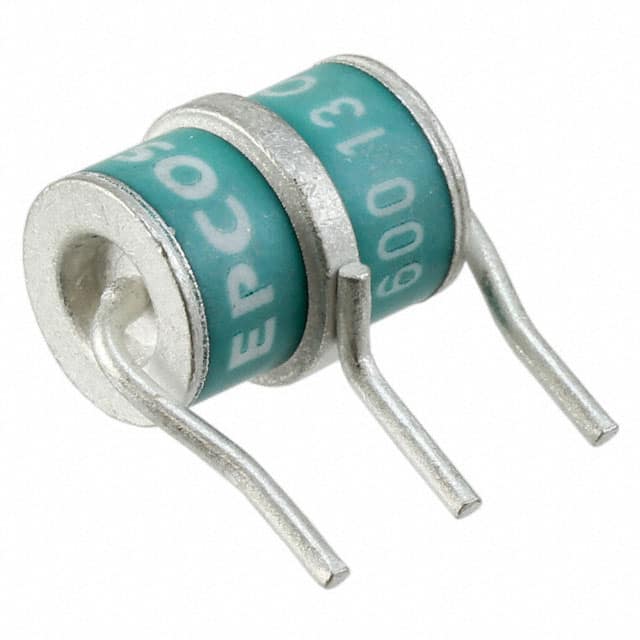

The TDK Electronics B88069X8830B102 is a 3-electrode gas discharge tube (GDT) surge arrester from the T63-C600X series. It is designed for overvoltage protection in telecommunications and industrial applications, offering a very fast response time and stable performance over life.
Key electrical specifications include a DC spark-over voltage of 420 V minimum, 600 V typical, and 700 V maximum. The impulse spark-over voltage at 100 V/µs is typically 870 V, with 99% of values below 900 V. The device can handle impulse discharge currents up to 20 kA (8/20 µs, 10 operations) and 40 kA (8/20 µs, 2 operations). AC discharge current capability is 20 A for 1 second (10 operations) and 130 A for 0.18 seconds (1 operation).
The arrester features low capacitance (maximum 1.5 pF at 1 MHz) and high insulation resistance (minimum 10 GΩ at 100 VDC). It is housed in an axial cylinder package with 3 radial bend leads and is RoHS-compatible. Operating temperature range is -40 °C to +125 °C.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.59 | $5.59 |
| 5+ | $4.64 | $4.64 |
| 10+ | $4.28 | $4.28 |
| 50+ | $3.55 | $3.55 |
| 100+ | $3.27 | $3.27 |
| 300+ | $2.88 | $2.88 |
| 500+ | $2.71 | $2.71 |
| 1,000+ | $2.49 | $2.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DC spark-over voltage is 420 V minimum, 600 V typical, and 700 V maximum.
The impulse discharge current (8/20 µs) is 20 kA for 10 operations and 40 kA for 2 operations.
The operating temperature range is -40 °C to +125 °C.
Yes, the datasheet states it is RoHS-compatible.
The package is an axial cylinder with 3 leads (radial bend) and through hole mounting.
The maximum capacitance is 1.5 pF at 1 MHz.
