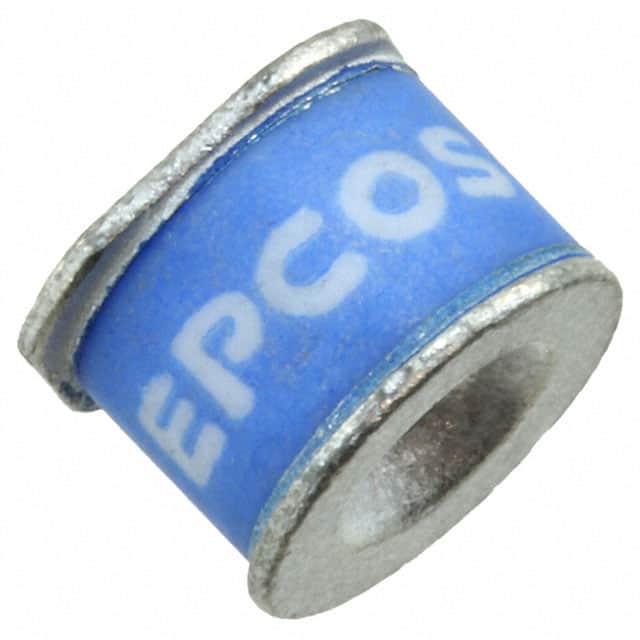

B88069X1630T602 Gas Discharge Tube Arrester with 90V DC spark-over voltage, rated for 20kA impulse discharge current (8/20µs). Surface mount 2-pole package.
Mfr Part #:

B88069X1630T602

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
Gas Discharge Tube Arrester with 90V DC spark-over voltage, rated for 20kA impulse discharge current (8/20µs). Surface mount 2-pole package.
✓ Total Stock: 59 pcs

B88069X1630T602 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
59 pcs
59 pcs On Request 1 On Request On Request On Request On Request On Request

B88069X1630T602 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Capacitance
Fail Short
Impulse Discharge Current (8
Insulation Resistance
Mounting Type
Number of Poles
Operating Temperature Range
SVHC Present
Storage Temperature
Tape & Reel
Tolerance
Voltage
Weight

B88069X1630T602 Description

Short technical summary and product information.

The B88069X1630T602 is a 2-electrode gas discharge tube arrester from TDK Electronics, part of the A80-C90XSMD series. It features a DC spark-over voltage of 90V with ±20% tolerance (72V to 108V). The device is designed for high surge current handling, with an impulse discharge current rating of 20kA (8/20µs waveform, 10 operations) and a maximum single-pulse rating of 25kA. It also withstands 5kA for 10/350µs waveforms and 100A for 10/1000µs (300 operations). AC discharge current ratings include 20A for 1 second (10 operations) and 100A for 0.18 seconds (1 operation). The arrester offers very low capacitance (<1.5 pF at 1 MHz) and high insulation resistance (>10 GΩ at 50 VDC). It is housed in a 2-SMD cylinder square end package, suitable for surface mount assembly. The operating temperature range is -40°C to +125°C. The device is RoHS-compatible and UL 497B certified (E163070). Typical applications include consumer electronics and alarm systems, where fast response time and stable performance over life are required.

B88069X1630T602 Quick Information

Product Type: Gas Discharge Tube Arrester (GDT)
Series: A80-C90XSMD
Canonical Name: Gas Discharge Tube Arrester, 90V DC Spark-Over, 20kA, 2 Pole, SMD
Subcategory: 2-Electrode GDT

B88069X1630T602 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B88069X1630T602 Features

  • 90V DC spark-over voltage with ±20% tolerance.
  • Rated for 20kA impulse discharge current (8/20µs).
  • Very low capacitance of less than 1.5 pF.
  • Surface mount 2-SMD cylinder square end package.
  • UL 497B certified for safety.

B88069X1630T602 Applications

  • Used in consumer electronic surge protection.
  • Ideal for alarm system overvoltage protection.
  • Suitable for telecom line protection circuits.
  • Protects sensitive electronics from lightning surges.

B88069X1630T602 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the DC spark-over voltage of the B88069X1630T602?

90V nominal, with a range of 72V to 108V (±20% tolerance).

What is the package type of this GDT?

2-SMD Cylinder Square End, surface mount.

What is the operating temperature range?

-40°C to +125°C.

Is the B88069X1630T602 RoHS compliant?

Yes, the datasheet states it is RoHS-compatible.

What is the impulse discharge current rating?

20kA for 8/20µs waveform (10 operations), 25kA maximum for single operation.

What certifications does this GDT have?

UL 497B (E163070).

What is the capacitance of this device?

Less than 1.5 pF at 1 MHz.
