B82793C0113N201 Common mode choke from TDK, 11µH inductance, 800mA rated current, 2-line surface mount package, AEC-Q200 qualified.
Mfr Part #:

B82793C0113N201

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
Common mode choke from TDK, 11µH inductance, 800mA rated current, 2-line surface mount package, AEC-Q200 qualified.
✓ Total Stock: 175 pcs
$ Price Range: $0.84 - $1.74

B82793C0113N201 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
175 pcs
On Request
175 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B82793C0113N201 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Ratings
Voltage Rating
View Similar Products (0)

B82793C0113N201 Description

Short technical summary and product information.

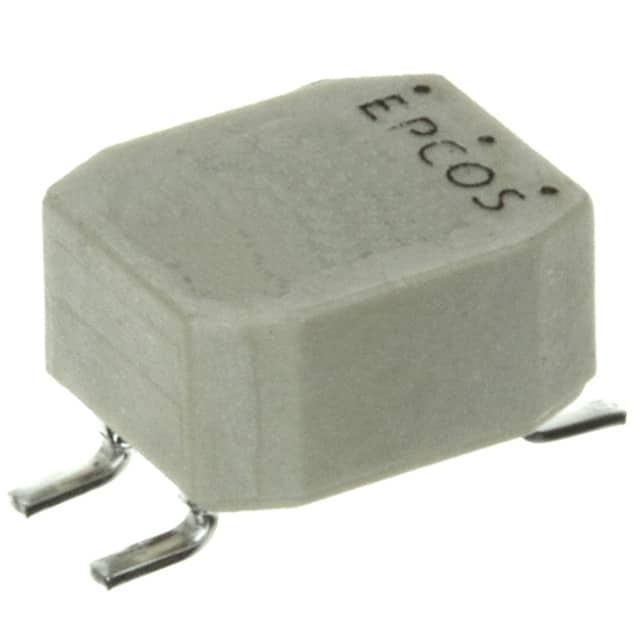

The TDK B82793C0113N201 is a current-compensated double common mode choke designed for signal line filtering. It features a ferrite core and LCP case with silicone potting, suitable for reflow soldering. Key electrical specifications include an inductance of 11 µH at 100 kHz, maximum DC resistance of 80 mOhm, current rating of 800 mA, and voltage rating of 42 V AC / 80 V DC. The component is qualified to AEC-Q200, making it suitable for automotive applications such as CAN bus interference suppression.



The choke is packaged in a horizontal surface mount configuration with 4 gull wing leads. Dimensions are 7.10 mm length, 6.00 mm width, and 4.80 mm maximum height. Operating temperature range is -40°C to 125°C. The component is RoHS-compatible per the manufacturer datasheet.



Typical applications include automotive electronic control units, industrial data line filtering, and suppression of asymmetrical interference on data lines up to several MHz. The B82793C0 series is designed for high rated currents with reduced component height.

B82793C0113N201 Quick Information

Product Type: Common Mode Choke
Series: B82793C0
Canonical Name: Common Mode Choke, 11 µH, 800mA, 2-Line, Surface Mount
Subcategory: Signal Line Choke

B82793C0113N201 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: REACH Unaffected

B82793C0113N201 Estimated Pricing

Qty Low High
1+ $1.74 $1.74
10+ $1.44 $1.44
25+ $1.26 $1.26
100+ $1.18 $1.18
250+ $1.10 $1.10
500+ $1.03 $1.03
1,000+ $0.87 $0.87
1,500+ $0.84 $0.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

B82793C0113N201 Features

  • 11µH inductance at 100kHz.
  • 800mA maximum current rating.
  • 80mOhm typical DC resistance.
  • AEC-Q200 qualified for automotive.
  • Surface mount with gull wing leads.

B82793C0113N201 Applications

  • Ideal for CAN bus interference suppression.
  • Used in automotive electronic control units.
  • Suitable for industrial data line filtering.
  • Suppresses common-mode noise in signal lines.

B82793C0113N201 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage?

The rated voltage is 42V AC / 80V DC.

What is the package type?

The package is a horizontal surface mount with 4 gull wing leads.

What is the operating temperature range?

Operating temperature range is -40°C to 125°C.

Is it RoHS compliant?

RoHS3 compliant per manufacturer datasheet.

What is the inductance value?

11 µH at 100 kHz.

What is the current rating?

800 mA maximum.

Is it AEC-Q200 qualified?

Yes, rated AEC-Q200.
