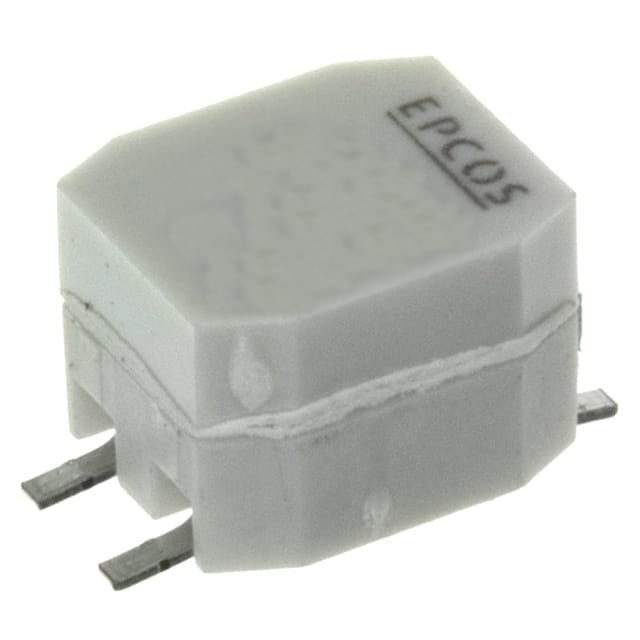

The TDK B82790S0513N201 is a current-compensated ring core double choke designed for common mode signal line filtering. It features a ferrite core and PPS case (UL 94 V-0) with sector winding construction.
Key electrical specifications include a nominal inductance of 51µH measured at 100kHz, a maximum current rating of 500mA, and a typical DC resistance of 140mOhm per winding. The component is rated for 42V AC or 80V DC operation and has an operating temperature range of -40°C to 125°C.
This choke is qualified to AEC-Q200, making it suitable for automotive applications such as CAN bus interfaces. It is also appropriate for industrial applications requiring common mode noise suppression. The component is RoHS-compatible and supplied in blister tape on 330mm reels with a packing unit of 1500 pieces per reel.
The surface mount package measures 7.10mm x 6.00mm with a maximum height of 5.20mm and features 4 gull wing terminals.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.35 | $2.35 |
| 10+ | $1.94 | $1.94 |
| 25+ | $1.69 | $1.69 |
| 100+ | $1.60 | $1.60 |
| 250+ | $1.48 | $1.48 |
| 500+ | $1.36 | $1.36 |
| 1,000+ | $1.24 | $1.24 |
| 1,500+ | $1.20 | $1.20 |
| 3,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 51 µH, measured at 100 kHz.
The maximum current rating is 500 mA.
The operating temperature range is -40°C to 125°C.
Yes, it is qualified to AEC-Q200.
It is a surface mount package with 4 gull wing terminals, measuring 7.10mm x 6.00mm with a maximum height of 5.20mm.
The typical DC resistance is 140 mOhm per winding.
The voltage rating is 42 V AC or 80 V DC.
