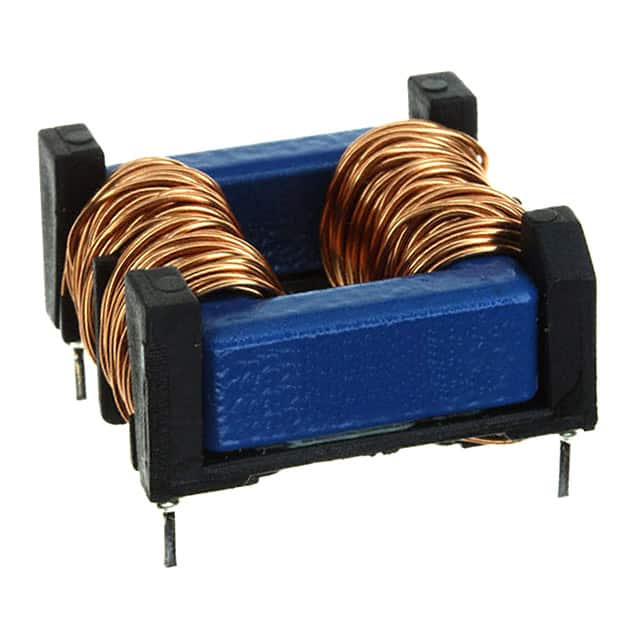

The TDK B82733F2232B001 is a current-compensated frame core double choke from the B82733F/V series, designed for power line common-mode and differential-mode interference suppression. It features a closed magnetic circuit with a ferrite frame core and epoxy coating (UL94 V-0), providing high inductance with low resistance and approximately 2% stray inductance for symmetrical interference suppression.
Key electrical specifications include 10 mH inductance per winding (measured at 10 kHz, 0.1 mA, +20°C, tolerance -30/+50%), 2.3 A rated current at +40°C, 188 mOhm typical DC resistance per winding, and rated voltages of 300 V AC (50/60 Hz) and 500 V DC. The isolation test voltage is 2000 V DC for 2 seconds between lines. The operating temperature range is -40°C to +125°C.
This through-hole component uses a horizontal, 4 PC pin package with lead spacing of 20 x 22.5 mm. It measures 26.50 mm in length, 24.80 mm in width, and 14.00 mm in height. The design complies with IEC/EN 60938-2 (VDE 0565-2) and UL/IEC 60939-3 standards, with VDE/ENEC and UL/ENEC approvals. It is suitable for wave soldering and is RoHS-compatible.
Typical applications include suppression of common-mode and differential-mode interferences in electronic ballasts for lamps and switch-mode power applications. The component is delivered in anti-static blister trays in cardboard boxes.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.92 | $1.92 |
| 10+ | $1.58 | $1.58 |
| 25+ | $1.46 | $1.46 |
| 50+ | $1.38 | $1.38 |
| 100+ | $1.30 | $1.30 |
| 250+ | $1.20 | $1.20 |
| 546+ | $1.12 | $1.12 |
| 1,092+ | $1.06 | $1.06 |
| 2,730+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 mH per winding, measured at 10 kHz, 0.1 mA, +20°C, with a tolerance of -30/+50%.
The rated current is 2.3 A at +40°C, 50 Hz.
It is rated for 300 V AC (50/60 Hz) and 500 V DC.
The operating temperature range is -40°C to +125°C.
It is a through-hole component with a horizontal, 4 PC pin package and lead spacing of 20 x 22.5 mm.
It has ENEC, UR, and VDE approvals.
The isolation test voltage is 2000 V DC for 2 seconds between lines.
