| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,000 pcs
|
25000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

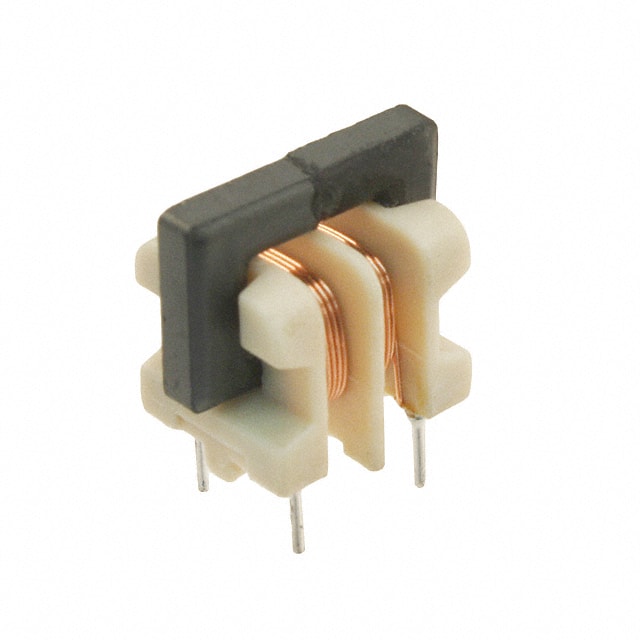

The B82730U3451A020 is a current-compensated U-core double choke designed for power line common-mode interference suppression. It features a rated inductance of 10 mH per winding at 10 kHz, with an inductance tolerance of -30/+50%. The component is rated for a maximum current of 450 mA at 50 Hz and +40 °C, and a voltage rating of 300 V AC at 50/60 Hz. The DC resistance is typically 1.75 Ohm per winding. The stray inductance is approximately 1.3% of rated inductance, providing symmetrical interference suppression. The choke is housed in a vertical, through-hole package with 4 PC pins and lead spacing of 7 x 8 mm. It operates over a temperature range of -40 °C to +125 °C. The terminals are made of CP wire, hot-dipped. The component is suitable for wave soldering and is RoHS-compatible. It is designed for applications such as compact switch-mode power supplies, electronic ballasts, and white goods.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.66 | $1.66 |
| 10+ | $1.37 | $1.37 |
| 25+ | $1.20 | $1.20 |
| 100+ | $1.13 | $1.13 |
| 250+ | $1.04 | $1.04 |
| 500+ | $1.00 | $1.00 |
| 5,096+ | $0.87 | $0.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
300 V AC at 50/60 Hz.
Through-hole mounting, vertical, 4 PC pin package.
-40 °C to +125 °C.
Yes, RoHS-compatible per datasheet.
10 mH per winding at 10 kHz.
450 mA at 50 Hz and +40 °C.
Common-mode interference suppression, switch-mode power supplies, electronic ballasts, white goods.
