B82720S2102N040 Current-compensated SMD ring core double choke, 3mH inductance, 1A rated current, 250V AC, surface mount.
Mfr Part #:

B82720S2102N040

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
Current-compensated SMD ring core double choke, 3mH inductance, 1A rated current, 250V AC, surface mount.
✓ Total Stock: 35 pcs
$ Price Range: $1.04 - $2.01

B82720S2102N040 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B82720S2102N040 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

B82720S2102N040 Description

Short technical summary and product information.

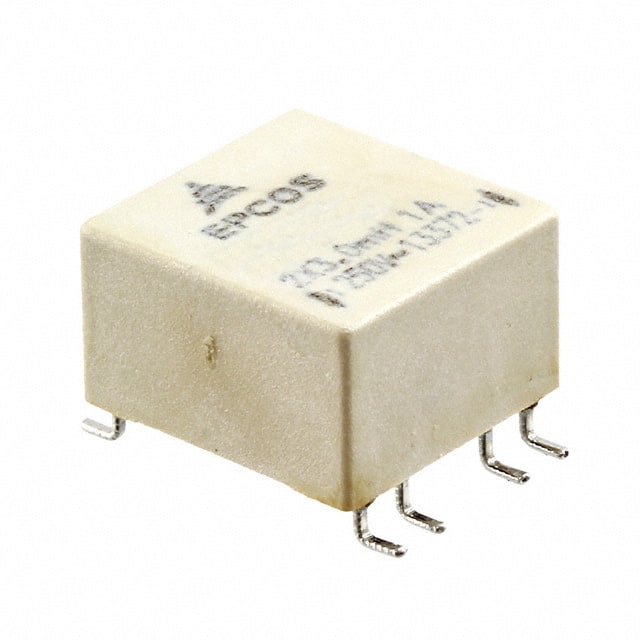

The TDK B82720S2102N040 is a current-compensated SMD ring core double choke from the B82720S series. It offers a nominal inductance of 3mH at 10 kHz, a rated current of 1A at +40°C, and a rated voltage of 250V AC. The choke features a ferrite core with epoxy coating and a plastic case, both UL 94 V-0 rated, and sector winding construction.



Designed for surface mount assembly, this component is supplied in a horizontal 8-gull-wing package measuring 14.50mm x 13.30mm with a maximum height of 10.70mm and weighs 2.5g. It includes approximately 0.7% stray inductance for differential-mode interference suppression and is suitable for reflow soldering.



Typical applications include suppression of common-mode interferences in compact electronic ballasts for lamps and compact switch-mode power supplies. The operating temperature range is -40°C to +125°C with a rated temperature of +40°C.

B82720S2102N040 Quick Information

Product Type: Common Mode Choke
Series: B82720S
Canonical Name: TDK B82720S Series Current-Compensated SMD Ring Core Double Choke 3mH 1A 250V
Subcategory: Current-Compensated Ring Core Double Choke

B82720S2102N040 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B82720S2102N040 Estimated Pricing

Qty Low High
1+ $2.01 $2.01
10+ $1.65 $1.65
25+ $1.53 $1.53
50+ $1.44 $1.44
100+ $1.36 $1.36
250+ $1.26 $1.26
500+ $1.19 $1.19
750+ $1.15 $1.15
1,250+ $1.10 $1.10
1,750+ $1.07 $1.07
2,500+ $1.04 $1.04

Estimated market price range - modelled values for guidance only, not live distributor offers.

B82720S2102N040 Features

  • 3mH nominal inductance at 10kHz.
  • 1A rated current at +40°C.
  • 250V AC rated voltage.
  • Surface mount 8 gull wing package.
  • UL 94 V-0 rated ferrite core and case.

B82720S2102N040 Applications

  • Suppresses common-mode interference in power lines.
  • Ideal for compact electronic ballasts in lamps.
  • Used in compact switch-mode power supplies.
  • Suitable for reflow soldering assembly.

B82720S2102N040 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-40°C to +125°C.

What is the rated voltage?

250V AC.

What is the rated current?

1A at +40°C.

What is the package style?

Horizontal, 8 Gull Wing surface mount.

Is this component RoHS compliant?

The datasheet states it is RoHS-compatible, but a certificate URL is not verified and confidence is low.
