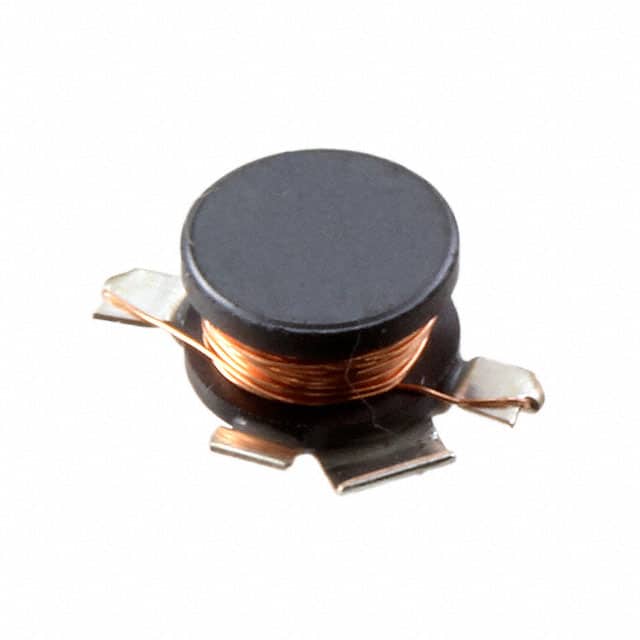

B82462A4334K000 TDK B82462A4334K000 is a 330µH unshielded wirewound ferrite core power inductor. It features 200mA rated current, 3.9Ohm max DCR, and is AEC-Q200 qualified for automotive applications.
Mfr Part #:

B82462A4334K000

Available from 1 distributors
Mfr Name: TDK Corporation
TDK Corporation
TDK B82462A4334K000 is a 330µH unshielded wirewound ferrite core power inductor. It features 200mA rated current, 3.9Ohm max DCR, and is AEC-Q200 qualified for automotive applications.
✓ Total Stock: 200 pcs
$ Price Range: $0.50 - $1.10

B82462A4334K000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B82462A4334K000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Ratings
Shielding
Size / Dimension
Standard Package Quantity
Tape & Reel
Termination Style
Tolerance
Type
Width
View Similar Products (0)

B82462A4334K000 Description

Short technical summary and product information.

The TDK B82462A4334K000 is a surface mount power inductor from the B82462A4 series. It features a ferrite core with wirewound construction and is unshielded. The inductor offers an inductance of 330µH with ±10% tolerance. It has a typical rated current of 200mA (based on 40K temperature rise at +85°C) and a saturation current of 340mA typical. The maximum DC resistance is 3.9Ohm.



Designed for automotive and industrial electronics, this inductor is qualified to AEC-Q200 and operates over a temperature range of -55°C to +150°C. It is suitable for filtering, coupling, decoupling, and DC/DC converter applications.



The component is packaged in a nonstandard SMD case measuring 6.00mm x 6.00mm x 3.00mm. It is supplied in tape and reel packaging with 2500 pieces per reel. The terminals are electro-plated Ag/Sn on CuSn6 base, compatible with lead-free reflow soldering per JEDEC J-STD-020D.

B82462A4334K000 Quick Information

Product Type: Fixed Inductor
Series: B82462A4
Canonical Name: TDK B82462A4334K000 SMT Power Inductor, 330µH, ±10%, 200mA, 3.9Ohm, Unshielded, AEC-Q200
Subcategory: Power Inductor

B82462A4334K000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B82462A4334K000 Estimated Pricing

Qty Low High
1+ $1.10 $1.10
10+ $0.90 $0.90
100+ $0.74 $0.74
250+ $0.72 $0.72
500+ $0.70 $0.70
1,000+ $0.61 $0.61
2,500+ $0.52 $0.52
5,000+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

B82462A4334K000 Features

  • 330µH inductance with ±10% tolerance.
  • 200mA rated current with 40K temperature rise.
  • AEC-Q200 qualified for automotive applications.
  • Unshielded wirewound ferrite core construction.
  • Surface mount package 6.0x6.0x3.0mm.

B82462A4334K000 Applications

  • Filtering of supply voltages in automotive electronics.
  • Coupling and decoupling in DC/DC converters.
  • Industrial electronics power management circuits.
  • Suitable for lead-free reflow soldering processes.

B82462A4334K000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the B82462A4334K000?

330µH with ±10% tolerance.

What is the rated current?

200mA typical (Itemp based on 40K temperature rise at +85°C).

What is the DC resistance?

3.9Ohm maximum.

What is the package size?

6.00mm x 6.00mm x 3.00mm nonstandard SMD package.

Is this inductor AEC-Q200 qualified?

Yes, qualified to AEC-Q200 per datasheet.

What is the operating temperature range?

-55°C to +150°C.

Is it shielded?

No, it is unshielded.
