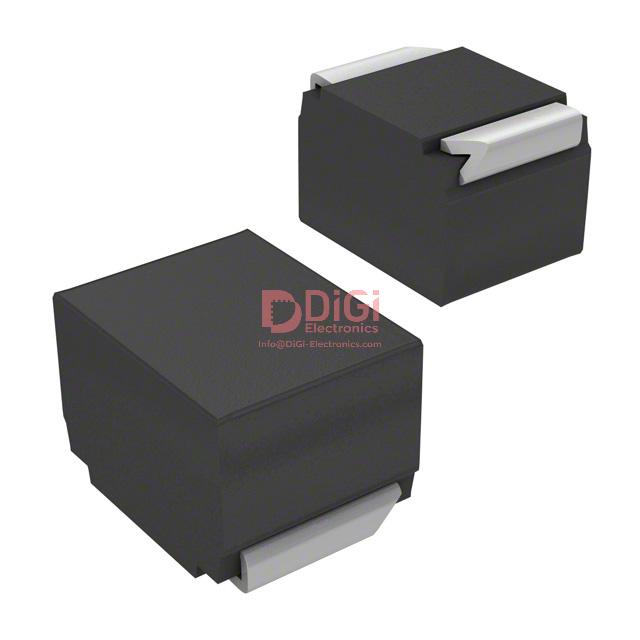

B82422H1332K The EPCOS B82422H1332K is a fixed inductor with a 3.3 µH inductance and a 770 mA current rating. It features a 2-SMD, J-Lead surface mount package.
Mfr Part #:

B82422H1332K

Available from 1 distributors
Mfr Name: EPCOS
EPCOS
The EPCOS B82422H1332K is a fixed inductor with a 3.3 µH inductance and a 770 mA current rating. It features a 2-SMD, J-Lead surface mount package.
✓ Total Stock: 8,000 pcs
$ Price Range: $0.20

B82422H1332K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

B82422H1332K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Inductance
Mounting Type
View Similar Products (0)

B82422H1332K Description

Short technical summary and product information.

The EPCOS B82422H1332K is a wirewound, unshielded drum core inductor designed for surface mounting. It offers a nominal inductance of 3.3 µH and can handle a current rating of up to 770 mA. The DC resistance (DCR) is a maximum of 180 mOhm.



This inductor is housed in a 2-SMD, J-Lead package, making it suitable for various electronic applications requiring compact and reliable inductive components. Its construction is designed for stability and performance in typical operating conditions.



Key electrical characteristics include its inductance value and current carrying capacity, essential for filtering, energy storage, and impedance matching in circuits. The surface mount design facilitates automated assembly processes.

B82422H1332K Quick Information

Product Type: Fixed Inductor
Series: B82422
Canonical Name: EPCOS B82422H1332K Wirewound Inductor
Subcategory: Fixed Inductor

B82422H1332K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

B82422H1332K Estimated Pricing

Qty Low High
1+ $0.20 $0.20

Estimated market price range - modelled values for guidance only, not live distributor offers.

B82422H1332K Features

  • Wirewound unshielded drum core inductor.
  • 3.3 µH nominal inductance value.
  • 770 mA maximum current rating.
  • 180 mOhm maximum DC resistance.
  • 2-SMD, J-Lead surface mount package.

B82422H1332K Applications

  • Used for filtering and energy storage.
  • Suitable for power supply circuits.
  • Ideal for signal conditioning applications.
  • Component for RF circuit designs.

B82422H1332K FAQs

4 frequently asked questions generated from this part’s specifications.
What is the inductance of the EPCOS B82422H1332K?

The inductance of the EPCOS B82422H1332K is 3.3 µH.

What is the current rating for the B82422H1332K inductor?

The B82422H1332K inductor has a current rating of 770 mA.

What is the DC resistance (DCR) of the EPCOS B82422H1332K?

The maximum DC resistance (DCR) for the EPCOS B82422H1332K is 180 mOhm.

What type of package is the EPCOS B82422H1332K inductor in?

The EPCOS B82422H1332K inductor is in a 2-SMD, J-Lead package.
